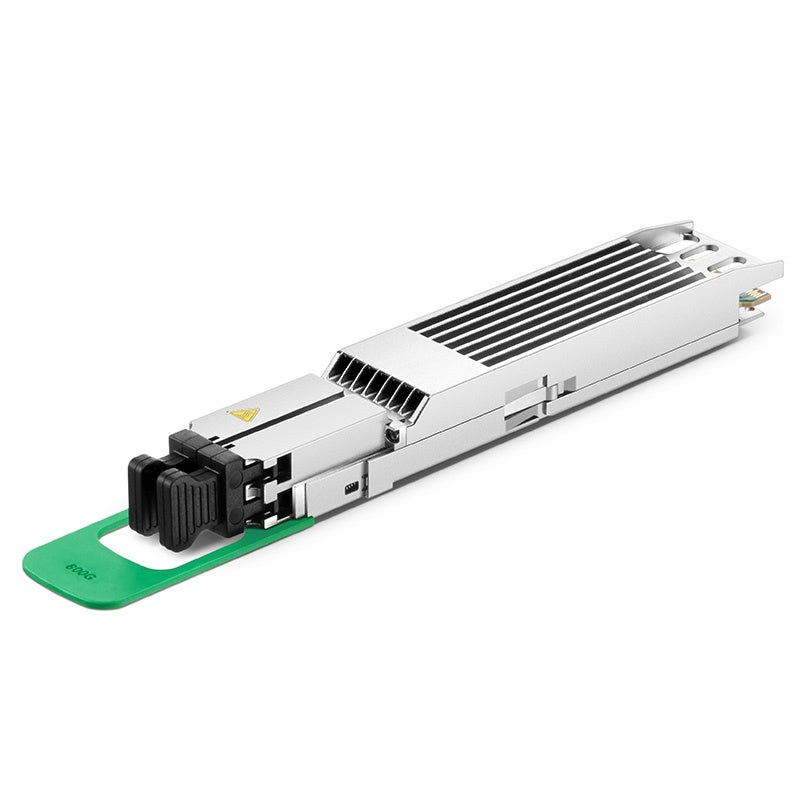

The NVIDIA InfiniBand MMS4X50-NM Compatible OSFP Optical Transceiver is an 800Gb/s 2x400Gb/s Twin-port OSFP, 2xFR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 100G-PAM4. The dual Far Reach 8-channel (2xFR4) design uses 100G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in Quantum-2 air-cooled switches.
Description
NVIDIA InfiniBand MMS4X50-NM Compatible OSFP 800G FR8 PAM4 Optical Transceiver (2x FR4, SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, Dual LC/UPC, DOM, Finned Top)
SPECIFICATION
| FORM FACTOR | Twin-port OSFP |
|---|---|
| DISTANCE | 2000m |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm |
| CONNECTOR / POLISH | 2xLC Duplex UPC |
| POWER CONSUMPTION | ≤16.5W |
| Transmitter | EML |
| Receiver | PIN |
| Media | SMF |
| Case Temperature |
0~70°C |
| Powerbudget | 4dB |
|---|---|
| Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Protocol | IEE802.3ck, IEEE 802.3cu, OSFP MSA |
| TX Power | -3.2~4.4dBm |
| Minimum Receiver Power | -7.2dBm |
