Description

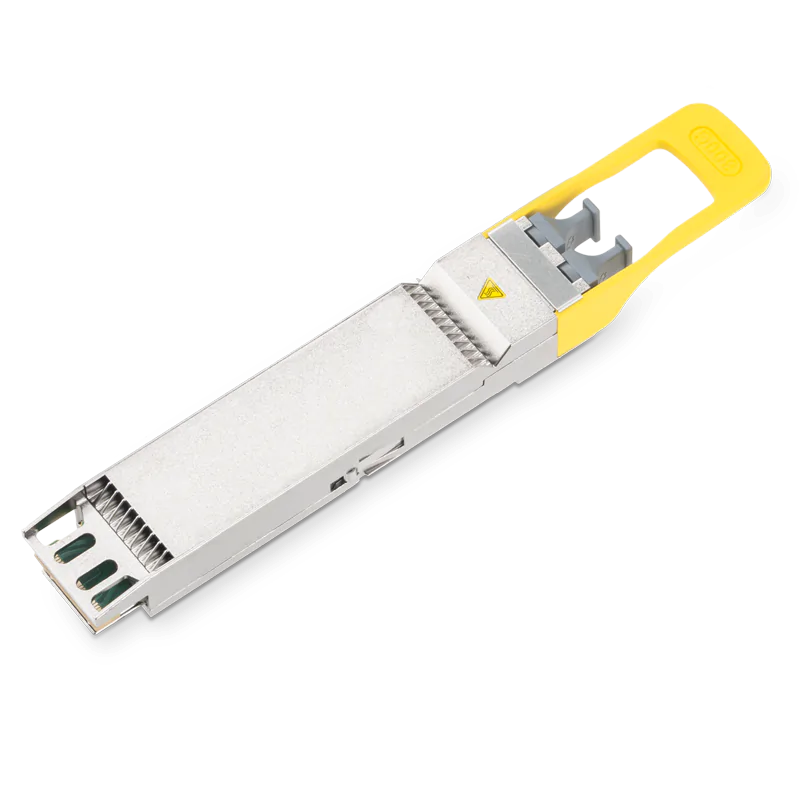

NVIDIA/Mellanox® MMS4X00-NS Compatible 800G 2xDR4/DR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 1310nm, 100m, Two MPO-12/APC, DOM, for SMF, Finned Top)
3Coptics OSFP-800G-2xDR4H Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiberreach of 100-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The OSFP-800G-2xDR4H is used in Quantum-2 and Spectrum-4 air-cooled switches to switches, ConnectX-7 and BlueField-3 DPUs.
SPECIFICATION
| FORM FACTOR | Twin-port OSFP |
|---|---|
| DISTANCE | 100m |
| Wavelength | 1310nm |
| CONNECTOR / POLISH | 2xMTP-12 APC |
| POWER CONSUMPTION | ≤16W |
| Transmitter | EML |
| Receiver | PIN |
| Media | SMF |
| Case Temperature |
0~70°C |
| Modulation（electrical) | 8x106.25Gb/s PAM4 |
|---|---|
| Modulation（Optical) | Two ports 4x106.25Gb/s PAM4 |
| Protocol | IB NDR,800G Ethernet Compliant |
