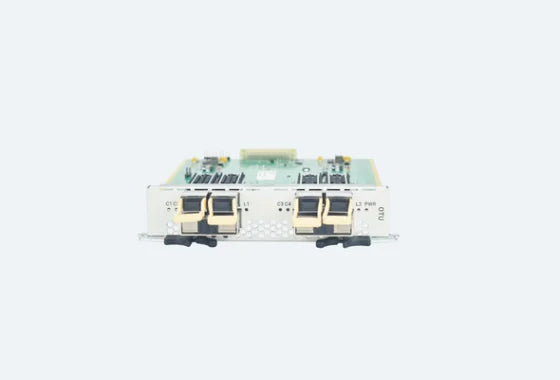

200G Muxponder for Multi-Service Transmission
200G multi-protocol multi-rate transponder/muxponder is designed for building high-capacity optical transport networks. Its flexible architecture with 2x QSFP28 client interface enables the same device to be used in multiple applications. It supports a flexible mix of 10GbE, 40GbE, and 100GbE services in various muxponder and transponder operation modes, combining different protocols and rates over a single 200G CFP2-DCO coherent uplink.
It allows maximum flexibility and scalability for fiber optic connectivity in wavelength division multiplexing (WDM) and dark fiber applications and provides an ideal solution for enterprises, data centers, campus networks, and metro networks.
| Client Interface | QSFP28 |
|---|---|
| Line Interface | CFP2 |
| Line Interface Wavelength Range | 1528~1568nm (C-Band) |
| Client Signal Mapping Mode | 100GE/OTU4 ↔ ODU4 |
| Out-Band Management | SNMP v2, WEB |
| Operating Temperature | -10 to 60°C |
| Client Interface Protocols | 100Gbe/OTU4 |
| Line Interface Protocol |
C-Band Tunable Coherent CFP2
|
| Line Modulation | DP-8QAM/16QAM |
| Line Signal Multiplexing Structure |
(100G) ODU4 ↔ ODU2/2e, ODU4 ↔ ODU3 (200G) ODUC2 ↔ ODU4 ↔ ODU2/2e, ODUC2 ↔ ODU4 ↔ ODU3 |
|---|---|
| Power Consumption | ＜30w |
| STORAGE TEMPERATURE | -40 to 80°C |
