Description
MTP/MPO Fanout Cable Assemblies

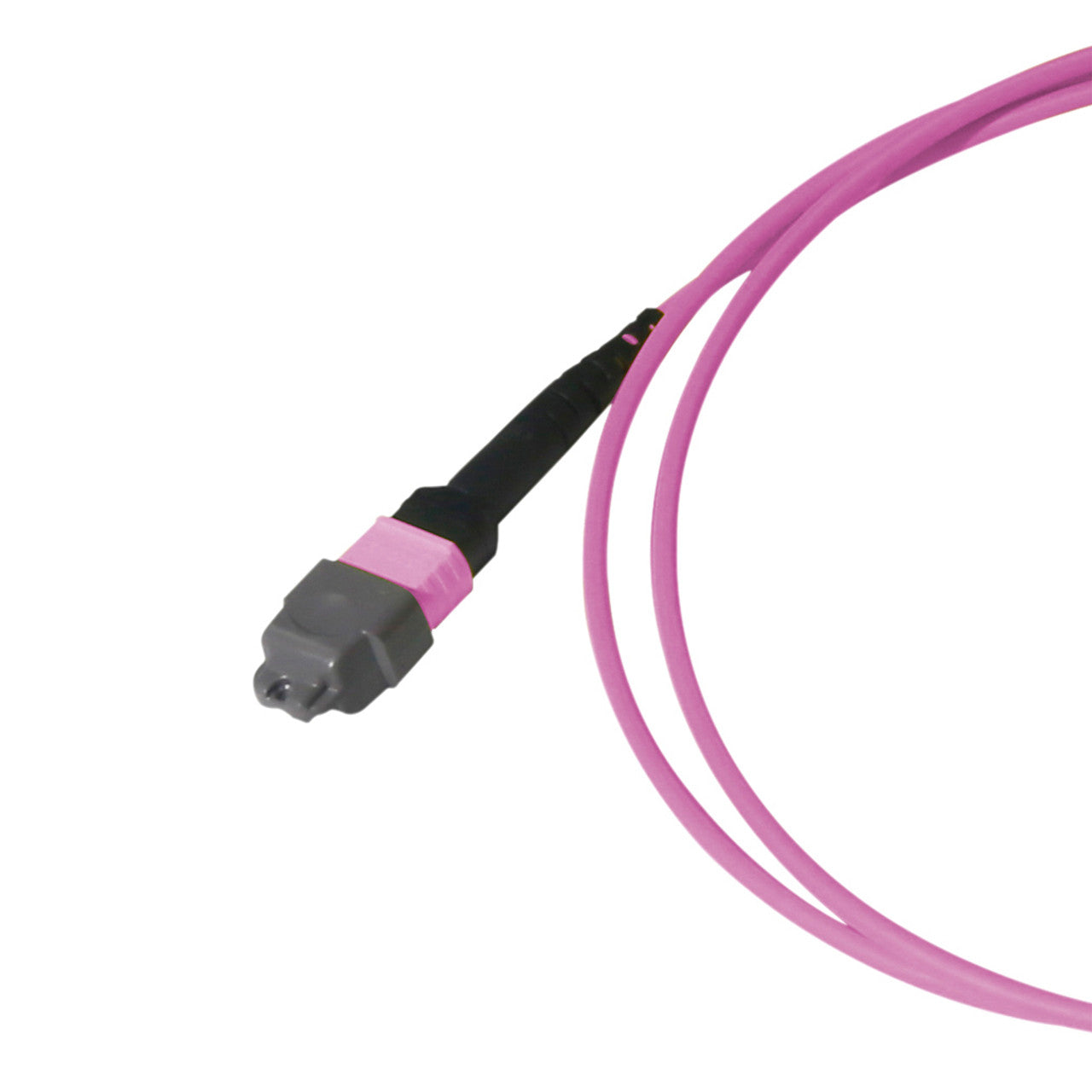

MTP Elite Female to Senko CS Connector, 8 Strand, Corning Clear Curve OM4 Multimode 50/125 Micron, OFNP Erika Violet Jacket
MTP Connectors
US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.
CS/UPC Connector
The Original CS® Standard connector design offers exceptional performance at an economical price. The CS is a Very Small Form Factor (VSFF) connector and is ideal for space-saving solutions. The CS connector allows you to double the density in patch panels compared to an LC duplex. It offers the ability to add more room for cable management as well as better airflow within a rack. The unique push-pull tab allows for better usability in high-density applications. The connector accepts up to 2.0/3.0mm duplex fiber. The connector has been adopted by QSFP-DD, OSFP, and COBO, Standardized by TIA.
Precision Optical Components
At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.
Precision optical interconnect solutions include:
- Low-loss, MT Elite multi-fiber ferrules
- Senko CS connector ferrules
- FTTx hardened connector cabling infrastructure
- MTP brand MPO cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-5
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
Specifications
- Simplex 3.0mm cable
- 50/125um OM4 Corning ClearCurve Glass
- Plenum-Rated OFNP Erika Violet Jacket
- 8-Fiber count
- Nominal Diameter: 3.0mm
- 40G SR4 (4X10G) 8 Fiber
- 100G SR4 (4X25G) 8 Fiber
- 200G SR4 500 Meter (4X100G) 8 Fiber
- 400G SR4 (4X100G) 8 Fiber
- Bend Radius: 1.8in (Installation), 1.2in (Long-term)
| Connector Side A |
MTP/UPC Elite Low Loss 8 Fiber | Connector Side B |
(4) Senko CS Connectors |
| Ferrule Type Side A |
|
Ferrule Type Side B |
|
| Insertion Loss Maximum Side A |
≤0.35dB | Insertion Loss Maximum Side B |
≤0.20dB |
| Insertion Loss Typical |
0.10dB | Insertion Loss Typical |
0.08dB |
| Return Loss | ≥0dB | Return Loss | ≥0dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 8 | Fiber Grade | |
| Polarity | Type A, B & C available | Cable Outer Diameter | 3.0mm |
| Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| 1 GbE Distance Max. | 10 GbE Distance Max. | 40 GbE Distance Max. | 100 GbE Distance Max. |
| 1,100 Meters | 300 Meter | 100 Meter | 100 Meter |
| =============== | ==================== | ================== | ================== |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
