Description
MTP/MPO Fanout Cable Assemblies

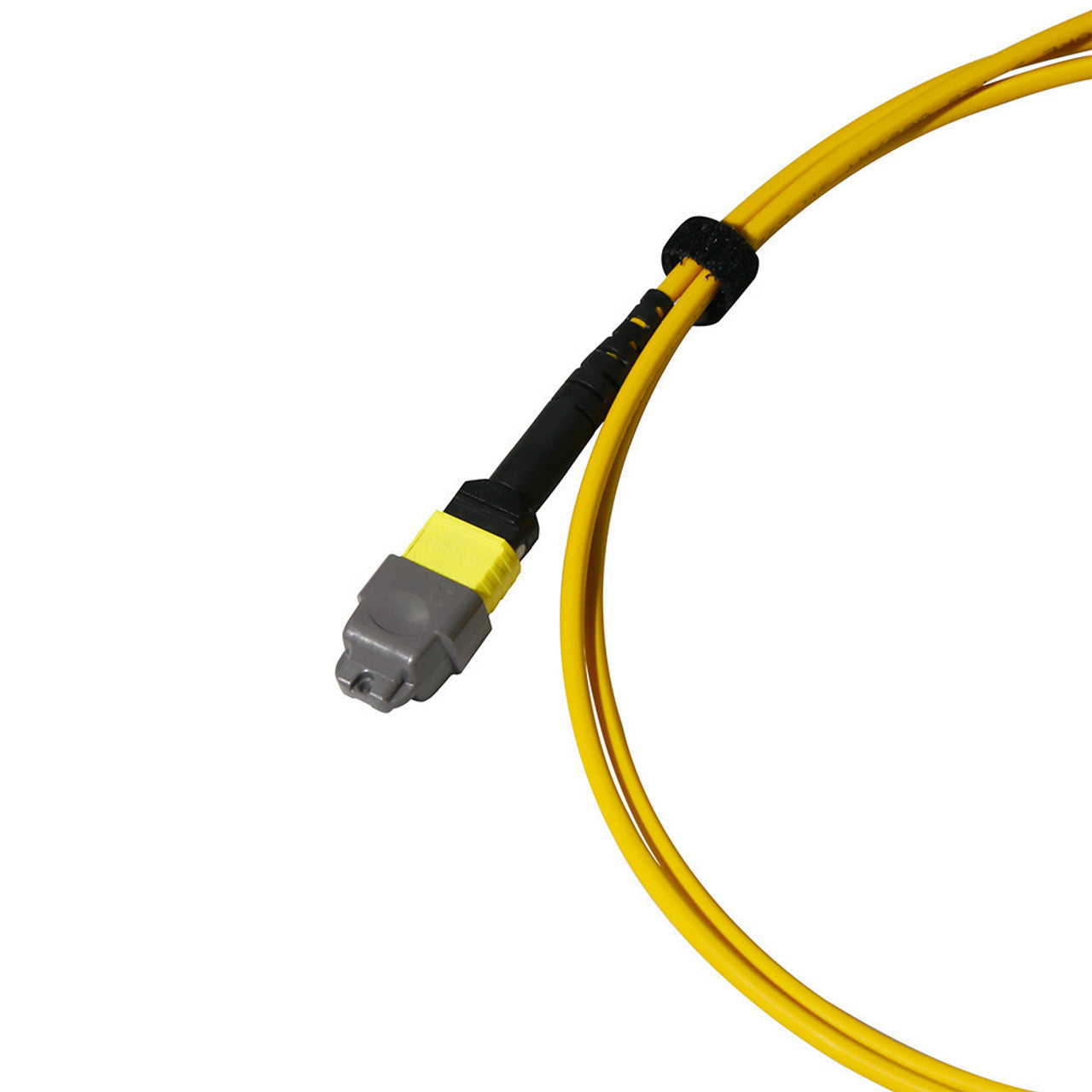

MTP Elite Female to Senko CS Connector, 8 Strand, Corning G657A1 Singlemode 9/125 Micron, OFNP Yellow Jacket

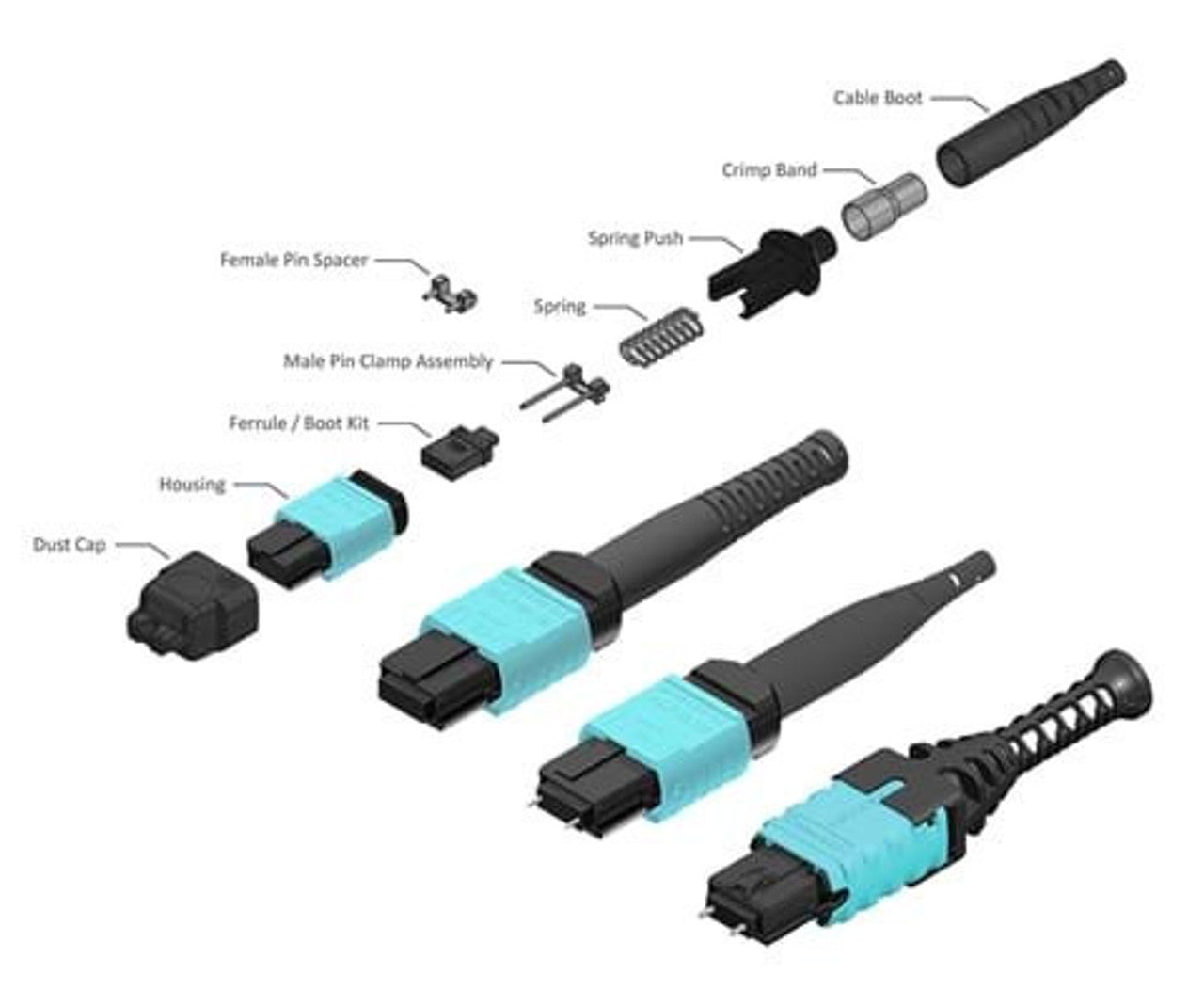

MTP Connectors
US Conec offers a full suite of MTP brand MPO connectors and solutions for a variety of applications and operating environments. The MTP connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

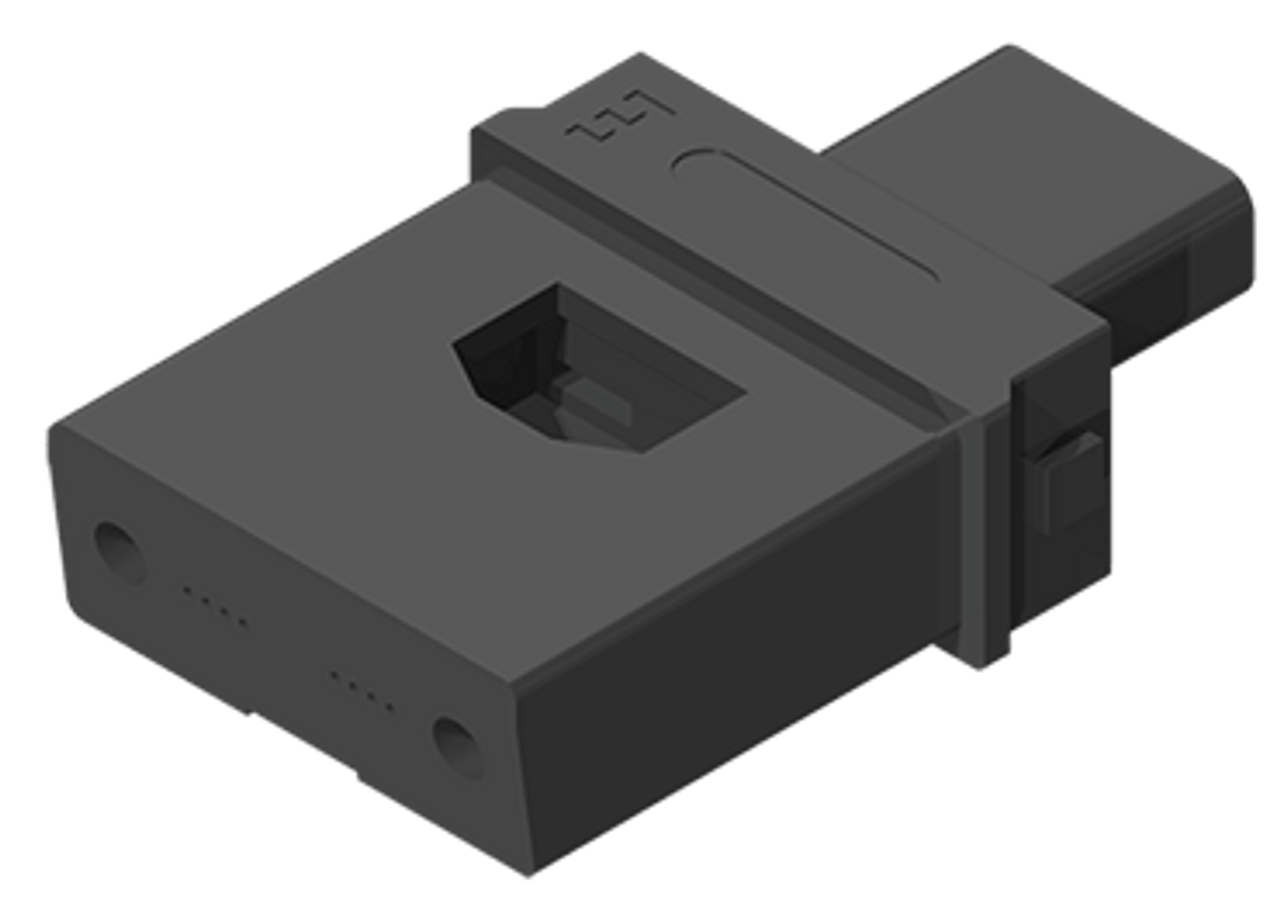

CS/UPC Connector
The Original CS Standard connector design offers exceptional performance at an economical price. The CS is a Very Small Form Factor (VSFF) connector and is ideal for space-saving solutions. The CS connector allows you to double the density in patch panels compared to an LC duplex. It offers the ability to add more room for cable management as well as better airflow within a rack. The unique push-pull tab allows for better usability in high-density applications. The connector accepts up to 2.0/3.0mm duplex fiber. The connector has been adopted by QSFP-DD, OSFP, and COBO, Standardized by TIA.
Precision Optical Components
At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.
Precision optical interconnect solutions include:
- Low-loss, MT Elite multi-fiber ferrules
- Senko CS connector
- FTTx hardened connector cabling infrastructure
- MTP® brand MPO cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-5
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
Specifications
- Simplex 3.0mm cable
- 9/125um OS2 Corning G657A1 Glass
- Plenum-Rated OFNP Yellow Jacket
- 8-Fiber count
- Nominal Diameter: 3.0mm
- 40G DR4 (4X10G) 8 Fiber
- 40G FR4 2-10 Kilometer (4X10G) 8 Fiber
- 40G LR4 10-20 Kilometer (4X10G) 8 Fiber
- 40G ER4 40 Kilometer (4X10G) 8 Fiber
- 100G DR4 (4X25G) 8 Fiber
- 100G FR4 2-10 Kilometer (4X25G) 8 Fiber
- 100G LR4 10-20 Kilometer (4X25G) 8 Fiber
- 100G ER4 40 Kilometer (4X25G) 8 Fiber
- 200G DR4 500 Meter (4X100G) 8 Fiber
- 200G FR4 2-10 Kilometer (4X100G) 8 Fiber
- 200G LR4 10-20 Kilometer (4X100G) 8 Fiber
- 200G ER4 40 Kilometer (4X100G) 8 Fiber
- 400G DR4 (4X100G) 8 Fiber
- 400G FR4 2-10 Kilometer (4X100G) 8 Fiber
- 400G LR4 10-20 Kilometer (4X100G) 8 Fiber
- 400G ER4 40 Kilometer (4X100G) 8 Fiber
- Bend Radius: 1.8in (Installation), 1.2in (Long-term)
| Connector Side A |
MTP/APC Elite Low Loss 8 Fiber | Connector Side B |
(4) CS Connectors |
| Ferrule Type Side A |
|
Ferrule Type Side B |
|
| Insertion Loss Maximum Side A |
≤0.35dB | Insertion Loss Maximum Side B |
≤0.20dB |
| Insertion Loss Typical |
0.10dB | Insertion Loss Typical |
0.08dB |
| Return Loss | ≥60dB | Return Loss | ≥60dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 8 | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Polarity | Type A, B & C available | Cable Outer Diameter | 3.0mm |
| Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| Wavelength |
1 Gb Distance Max. |
Wavelength |
10 Gb Distance Max. |
| 1310nm | > 25,000 Meters | 1310nm | 10,000 - 25,000 Meters |
| 1550nm | > 40,000 Meters | 1550nm | 40,000 Meters |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
