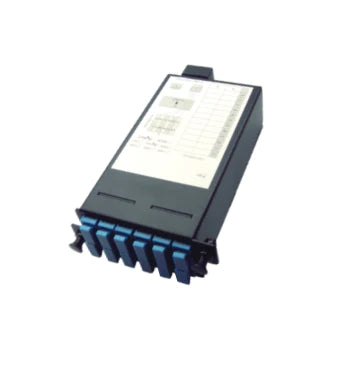

FUD series MTP® fiber cassettes feature one rear 8-fiber MTP® port connection and 4 duplex LC ports in front. This Base-8 MTP® fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FUD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
| Fiber Count | 8 Fibers |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Front Connector Type | 4 LC UPC Duplex (Blue) |
| Rear Connector Type | 1x US Conec MTP® APC Base-8 Male (Pinned) |
| MTP® Adapter | Key up to Key down |
| Performance Level | Laser Optimized |
| Insertion Loss | MPO®≤0.35dB, LC≤0.2dB |
| Return Loss | MTP®≥60dB, LC≥50dB |
| RoHS Compliancy Status | Compliant |
| Dimensions (HxWxD) | 88mm×133mm×34mm |
| Operating Temperature | -10°C to 60°C |
| Storage and Shipping Temperature | -10°C to 60°C |
Polarity Drawing
Polarity Datasheet
