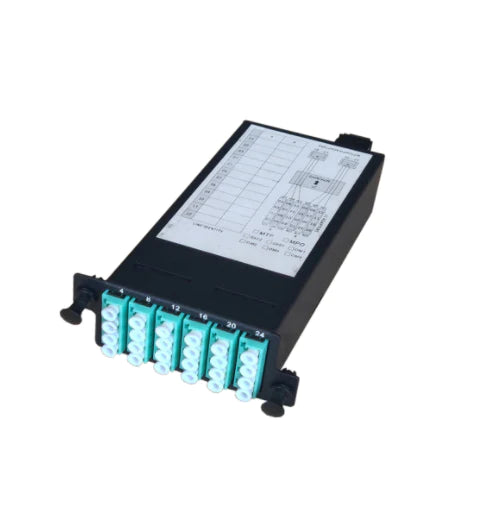

MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for multiple applications.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FUD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
SPECIFICATION
| Fiber Count | 24 Fibers |
|---|---|
| Fiber Mode | OM4 50/125μm |
| Front Connector Type | 12 LC UPC Duplex (Aqua) |
| Rear Connector Type | 2x US Conec MTP® UPC Male (Pinned) |
| MTP® Adapter | Key up to Key down |
| Dimensions (HxWxD) | 88mm×133mm×34mm |
| Insertion Loss | MTP®≤0.35dB, LC≤0.2dB |
| Return Loss | MTP®≥20dB, LC≥30dB |
| RoHS Compliancy Status | Compliant |
| Dimensions (HxWxD) | 88mm×133mm×34mm |
| Operating Temperature | -10°C to 60°C |
| Storage and Shipping Temperature | -10°C to 60°C |
Polarity Drawing
Polarity Datasheet
