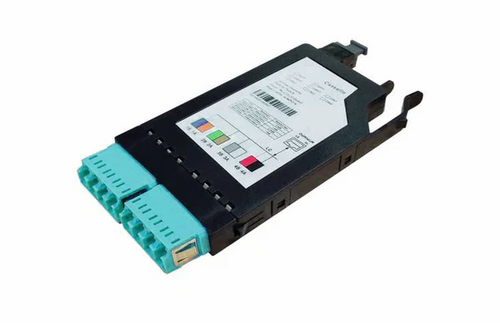

FHX series MPO fiber cassettes feature one rear 8-fiber MPO port connection and 2x LC UPC Quad ports in front. This Base-8 MPO fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable.
The Senko/Nissin/USconec MPO connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
The Senko/Nissin/USconec MPO connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHX High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
| Fiber Count | 8 Fibers |
|---|---|
| Fiber Mode | OM4 50/125um |
| Front Connector Type | 2 LC UPC Quad (Aqua) |
| Rear Connector Type | 1x MPO Base-8 Male (Pinned) |
| MTP® Adapter | Key up to Key down |
| Performance Level | Laser Optimized |
| Insertion Loss | MPO®≤0.35dB, LC≤0.2dB |
| Return Loss | MPO≥60dB, LC≥50dB |
| RoHS Compliancy Status | Compliant |
| Dimensions (HxWxD) | 60mm×96mm×11.7mm |
| Operating Temperature | -10°C to 60°C |
| Storage and Shipping Temperature | -10°C to 60°C |
Polarity Drawing
Polarity Datasheet
