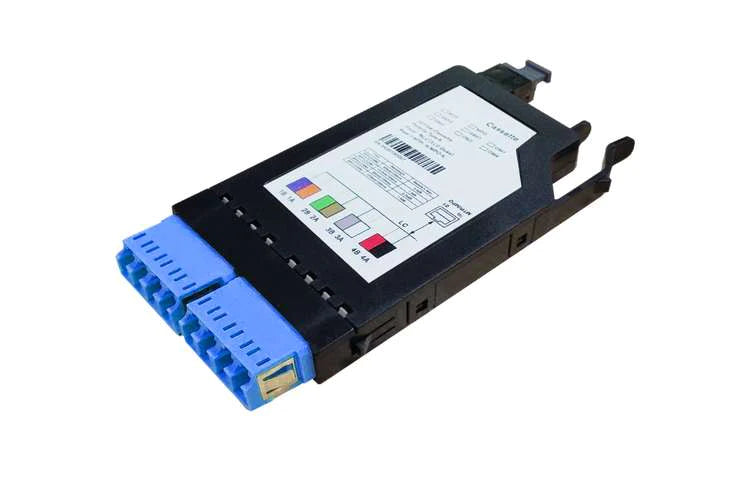

FHX MPO-8 CASSETTE, 8 FIBERS OS2 SINGLE MODE, MPO TO 2X LC QUAD (BLUE), 0.35DB MAX


Polarity: Type A
Price:
Sale price$83.00

Description

FHX 8 Fibers MPO-8 to 2x LC Quad OS2 Single Mode MPO Cassette

FHX series MPO fiber cassettes feature one rear 8-fiber MPO port connection and 2x UPC Quad LC ports in front. This Base-8 MPO fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable.
The Senko/Nissin/USconec MPO connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

FHX High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.

SPECIFICATION

Fiber Count 8 Fibers
Fiber Mode OS2 9/125μm
Front Connector Type 2 LC UPC Quad (Blue)
Rear Connector Type 1x MPO Base-8 Male (Pinned)
MTP® Adapter Key up to Key down
Performance Level Laser Optimized
Insertion Loss MPO®≤0.35dB, LC≤0.2dB
Return Loss MPO≥60dB, LC≥50dB
RoHS Compliancy Status Compliant
Dimensions (HxWxD)  60mm×96mm×11.7mm
Operating Temperature -10°C to 60°C
Storage and Shipping Temperature -10°C to 60°C



Polarity Drawing

Polarity Datasheet

MTP/MPO Polarity Introduction
