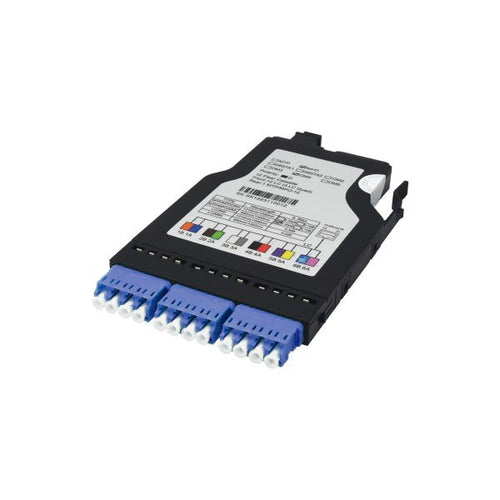

FHX MPO-12 CASSETTE, 12FIBERS OS2 SINGEMODE, MPO TO 3X LC QUAD (BLUE), 0.35DB MAX


Polarity: Type A
Price:
Sale price$88.00

Description

FHX 12 Fibers MPO-12 to 3x LC Quad OS2 Singemode MPO Cassette

FHX series MPO fiber cassettes feature one rear 12-fiber MPO port connection and 3x LC Quad LC ports in front. This Base-12 MPO fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable.
The Senko/Nissin/USconec MPO connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

HD12C High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
Fiber Count 12 Fibers
Fiber Mode OS2 9/125um
Front Connector Type 3 LC UPC Quad (Blue)
Rear Connector Type 1x MPO Base-12 Male (Pinned)
MTP® Adapter Key up to Key down
Performance Level Laser Optimized
Insertion Loss MPO®≤0.35dB, LC≤0.2dB
Return Loss MPO≥60dB, LC≥50dB
RoHS Compliancy Status Compliant
Dimensions (HxWxD)  90mm×130mm×11.7mm
Operating Temperature -10°C to 60°C
Storage and Shipping Temperature -10°C to 60°C



Polarity Drawing

Polarity Datasheet

MTP/MPO Polarity Introduction
