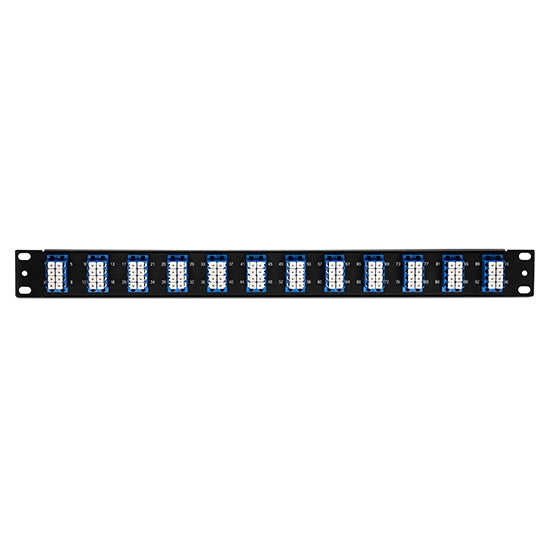

Fiber patch panels are the bridge of fiber patch cables, serving as standard 1U 19” rack, ODF and cabinets, to create a complete system for connectivity. It can be applied in LANs housing, optical communication, FTTD, and data center cabling etc.
SPECIFICATION
| FORM FACTOR | 24 |
|---|---|
| Fiber Count |
96 Fibers |
| Adapter Type | SMF LC Quad |
| Dimensions(WxH) |
19''×1.73''(482.6x44mm) |
| Plate |
1.5mm SPCC (Black Coating) |
| Sleeve Material |
Ceramics |
| Insertion loss |
≤0.2dB (0.1dB Typ.) |
| Return loss |
≥50dB |
| RoHS Compliancy Status |
Compliant |
| Application |
Standard EIA 19'' Rack Rails |
