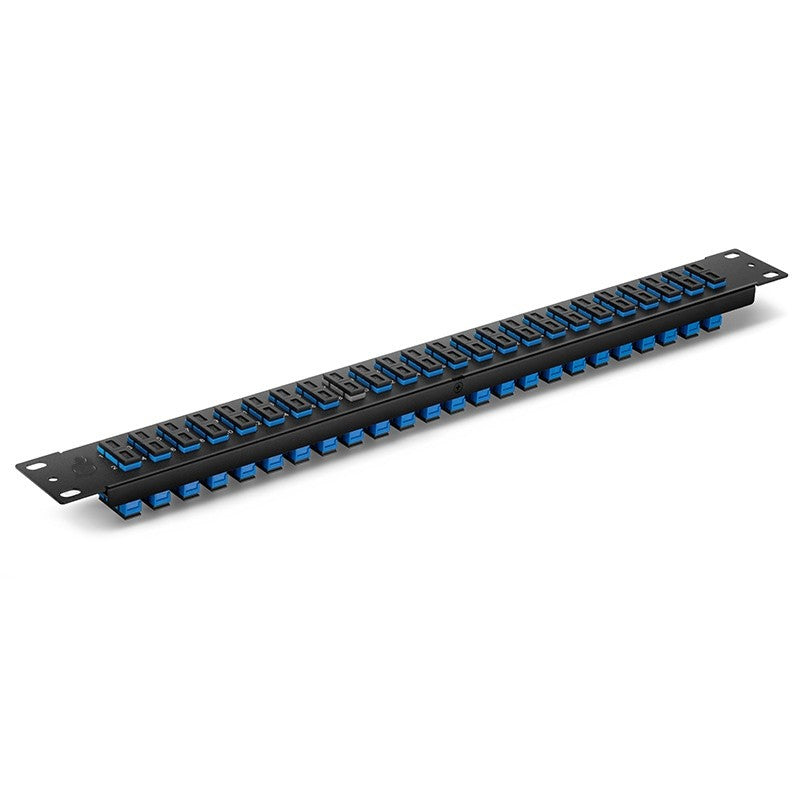

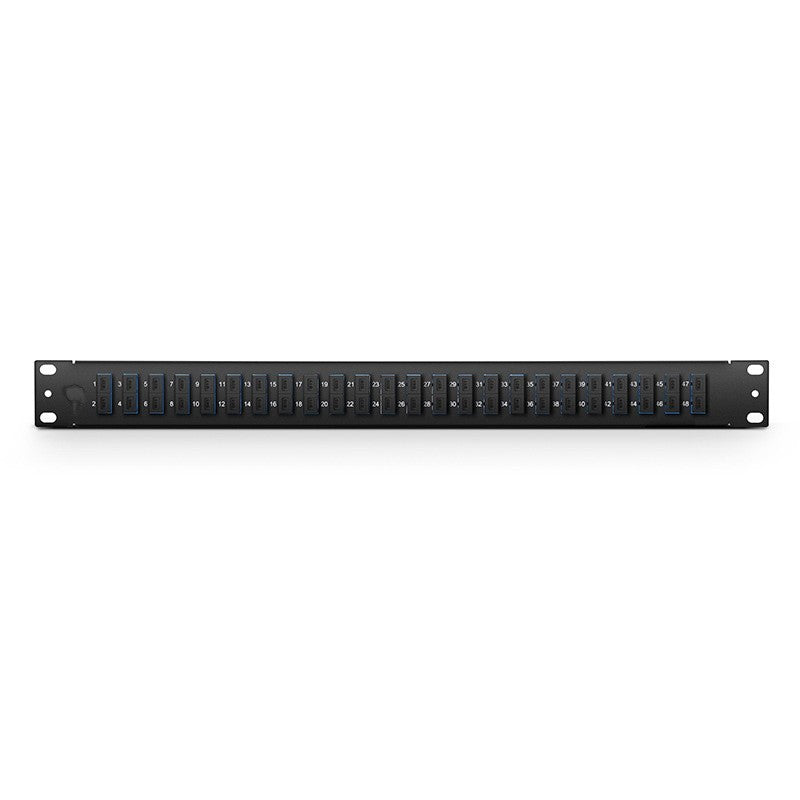

This FHU 24 ports fiber patch panel is with a full complement of SC duplex couplers, which can be easily installed in any standard 19" rack or enclosure for LAN interconnect or cross-connect patching. It can be applied in data center cabling, High EMI/RFI applications, Telco CO and MAN etc.
FHU Series is designed to connect where fast deployment and simple maintenance are critical.
SPECIFICATION
FORM FACTOR | 24 |
---|---|
Fiber Count |
48 Fibers |
Adapter Type | SC/UPC Duplex (Blue) |
Fiber Mode |
OS2 9/125µm |
Material of Plate |
Steel, Powder-coated Black |
Dimensions (HxW) |
1.73''x19'' (44x482.6mm) |
RoHS Compliancy Status |
Compliant |
Application |
Standard EIA 19'' Rack Rails |
