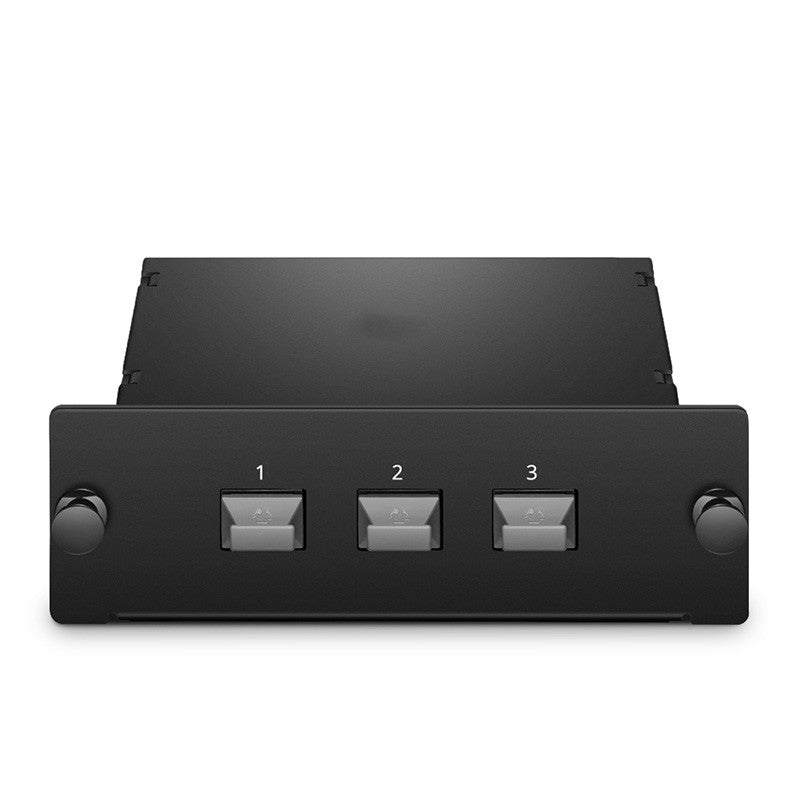

FHD (High Density) series MTP® fiber cassette modules offer 12-fiber MTP® adapters on the rear of the units routed to 8-fiber MTP® adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
The MTP®-12 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 96 fiber connections to be deployed in the FHD series rack unit (1 RU).
SPECIFICATION
| Fiber Count | 24 Fibers |
|---|---|
| Fiber Mode | OM4 |
| Adapter Type |
US Conec MTP® |
| Adapter Color |
Black |
| Number of Front MTP® Port |
3 Ports |
| Number of Rear MTP® Port |
2 Ports |
| Key Orientation |
Opposed |
| Housing Type |
Cassette |
| Insertion Loss |
≤0.35dB |
| Return Loss |
≥20dB |
| Polarity |
Universal |
| Dimensions (HxWxD) | 1.38''x 4.29''x 6.22'' (35x 109x 158mm) |
| MTP Adapter |
Key Up to Key Down |
| Material of Cassette Body |
Aluminium (AL5052) |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
