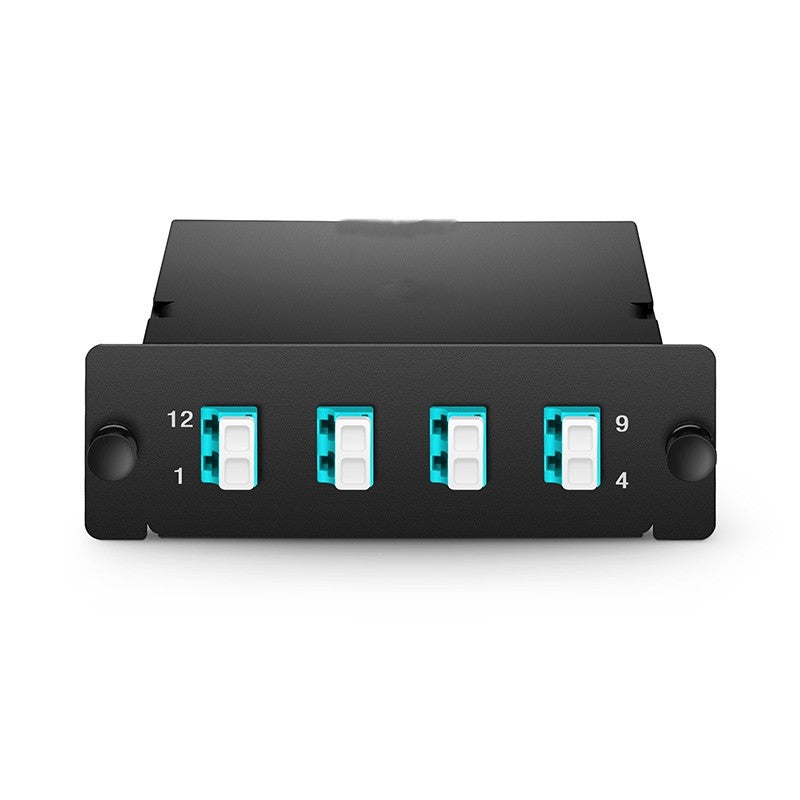

FHD ( High Density) series MTP® fiber cassettes feature one rear 8-fiber MTP® port connection and 4 duplex LC ports in front. The MTP®-8 cassette is ideal for deployments including 40G to 10G, 100G to 25G and 400G to 100G. Universal polarity to be used at both ends of a Method B trunk reduces the complexity of a fiber network, ensuring consistent polarity, and streamlining network maintenance.
This Base-8 MTP® fiber cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable.
SPECIFICATION
| Fiber Count | 8 Fibers |
|---|---|
| Fiber Mode | OM4 50/125μm |
| Front Connector Type | LC UPC Duplex (Aqua) |
| Number of LC Port | 4 Ports |
| Rear Connector Type | US Conec MTP® UPC (Pinned) |
| Number of MTP® Port |
1 Port |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Universal |

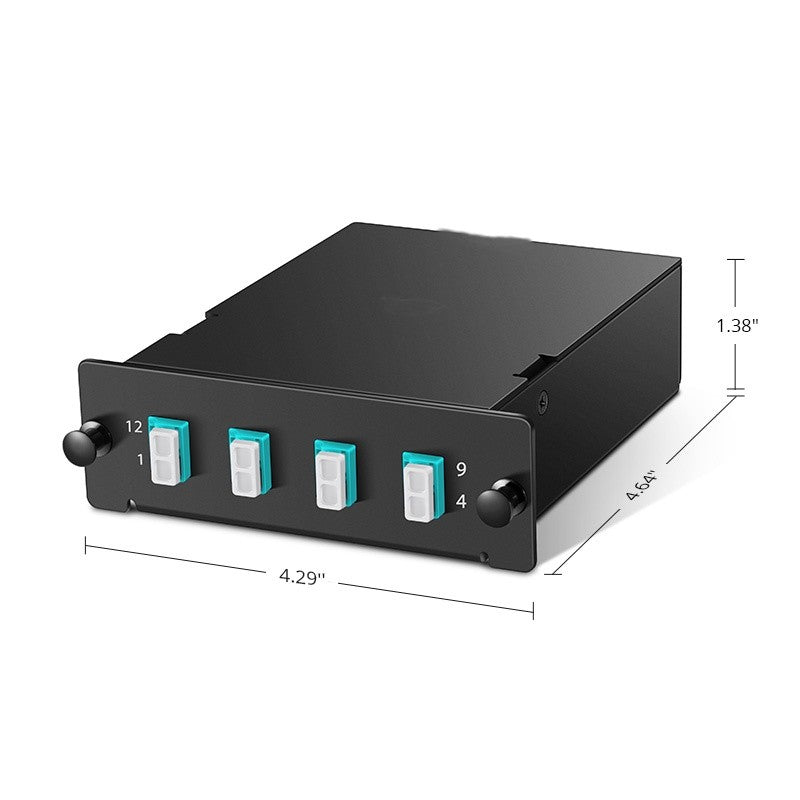

| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
| Return Loss |
MTP≥20dB, LC≥30dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
