FHD High Density series MTP® fiber cassette modules offer 24-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications. The MTP®-24 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 96 fiber connections to be deployed in the FHD series rack unit (1 RU).
SPECIFICATION
| Fiber Count | 24 Fibers |
|---|---|
| Fiber Mode | OM4 50/125μm |

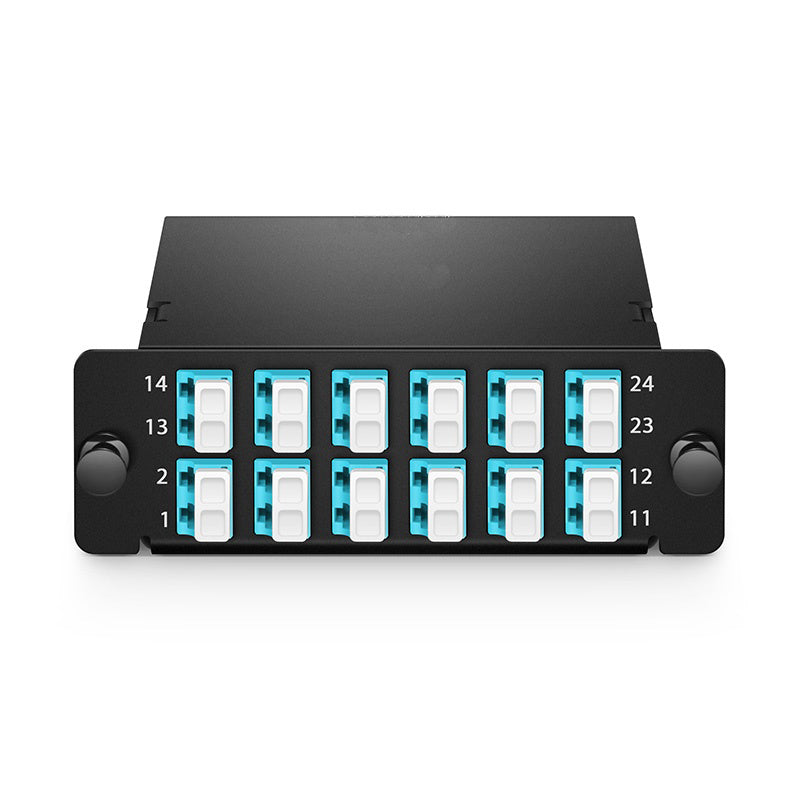

| Front Connector Type | LC UPC Duplex (Aqua) |
| Number of LC Port | 12 Ports |
| Rear Connector Type | US Conec MTP® UPC (Pinned) |
| Material of Plate | 1 Port |
| MTP Adapter | Key Up to Key Down |
| Polarity | Type A |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB |

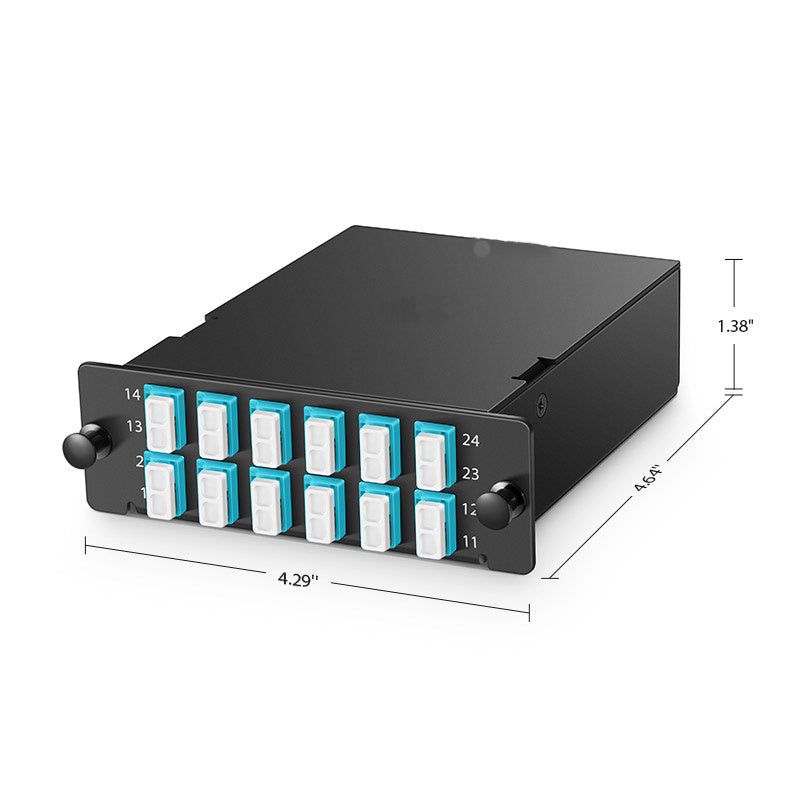

| Dimensions (HxWxD) | 35x109x118mm |
| Application | Matching for FHD Series |
