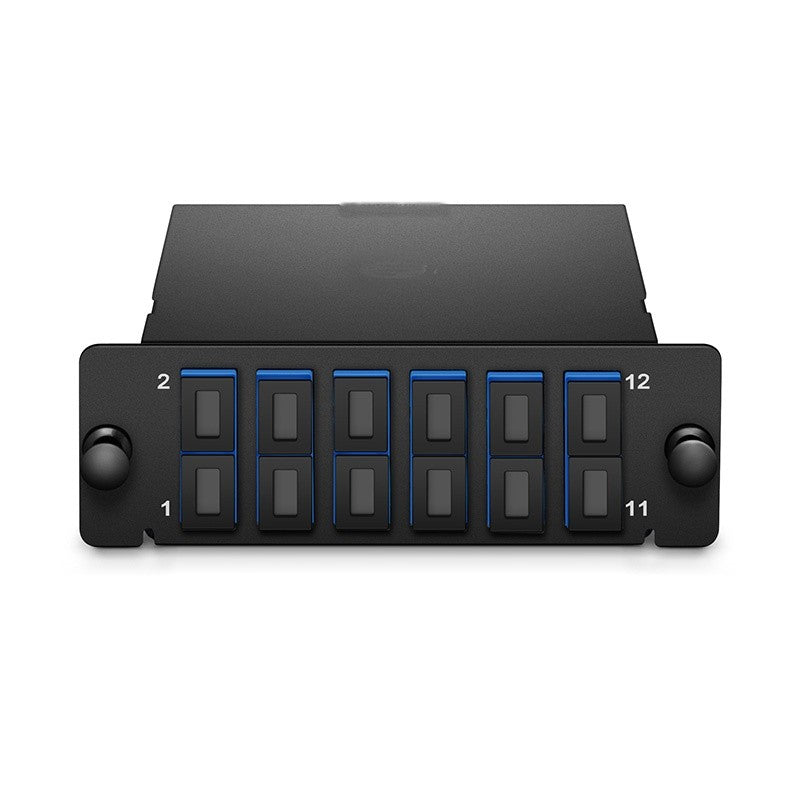

MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex SC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
The MTP®-12 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 48 fiber connections to be deployed in the FHD series rack unit (1 RU).
SPECIFICATION
| Fiber Count | 12 Fibers |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Front Connector Type | LC UPC Duplex (Blue) |
| Number of LC Port | 6 Ports |
| Rear Connector Type | US Conec MTP® APC (Pinned) |
| Number of MTP® Port |
1 Port |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Type A |

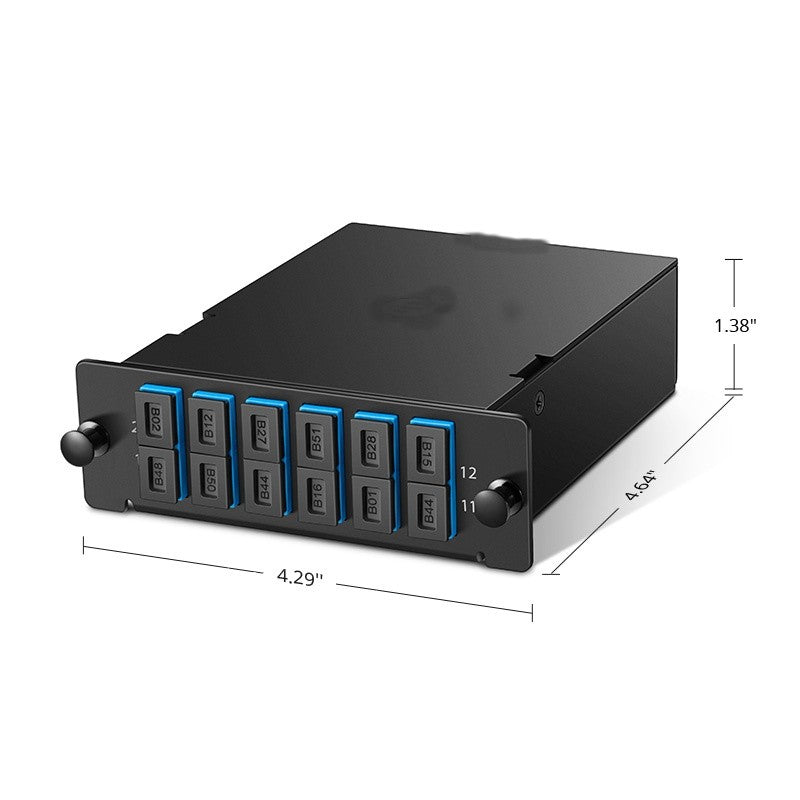

| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
| Return Loss |
MTP≥60dB, LC≥50dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
