FHD MTP®-12 Cassette, 12 Fibers OS2 Single Mode, Type A, MTP® to 6 x LC Duplex (Blue), 0.35dB max


Price:
Sale price$71.00

Description

FHD 12 Fibers Elite MTP®-12 to LC Duplex Fiber Optic Plug-N-Play Cassette, 12 Strands OS2 9/125μm SMF

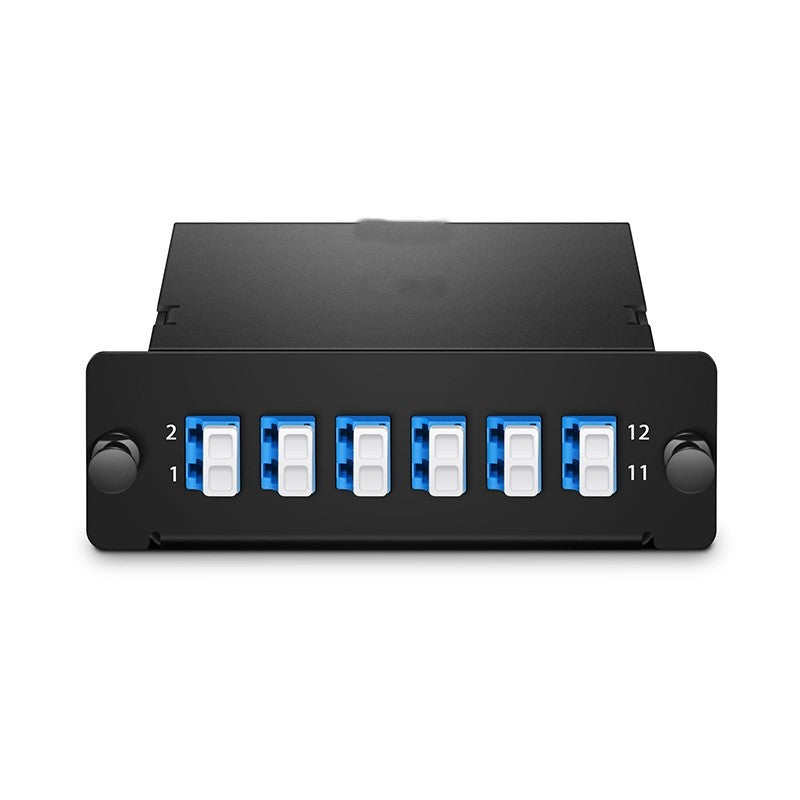

FHD (High Density) series MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.

The MTP®-12 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 48 fiber connections to be deployed in the FHD® series rack unit (1 RU).

SPECIFICATION

Fiber Count 12 Fibers
Fiber Mode OS2 9/125μm
Front Connector Type LC UPC Duplex (Blue)
Number of LC Port 6 Ports
Rear Connector Type US Conec MTP® APC (Pinned)
Number of MTP® Port
1 Port
MTP Adapter Key Up to Key Down
Housing Type
Cassette
Material of Sleeve
Zirconia Ceramic
Material of Cassette Body
Aluminium (AL5052)
Polarity
Type A

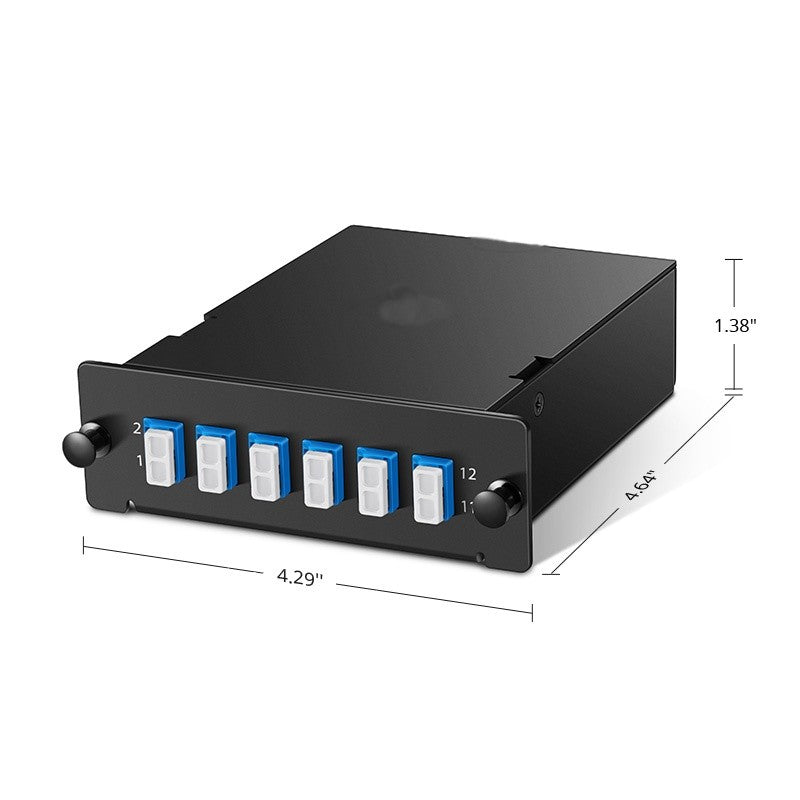

Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
Insertion Loss
MTP≤0.35dB, LC≤0.2dB
Return Loss
MTP≥60dB, LC≥50dB
Standard
RoHS Compliant
Application
Matching for FHD Series Enclosures
