Description

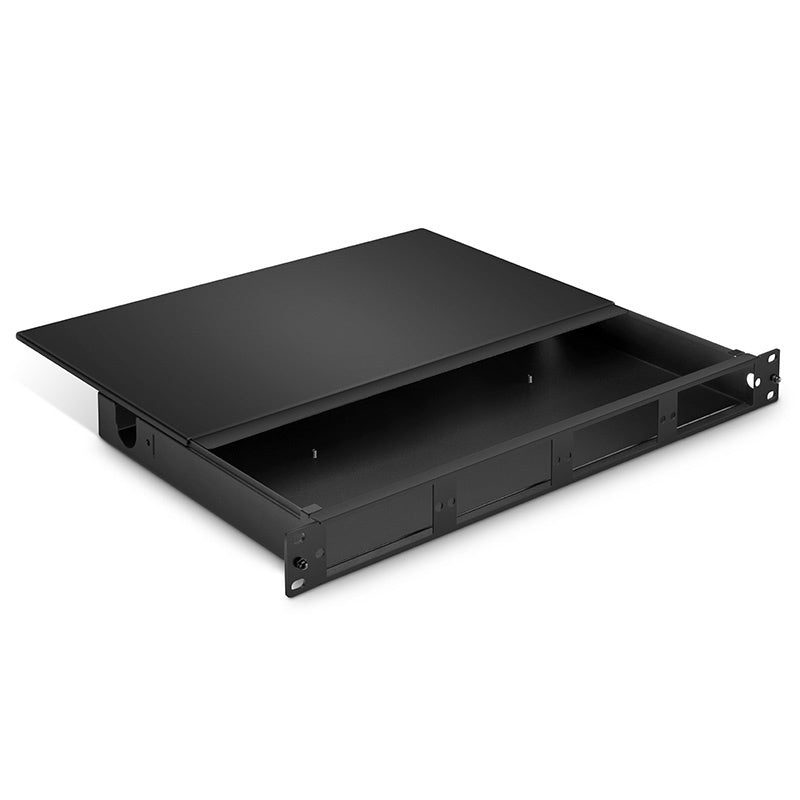

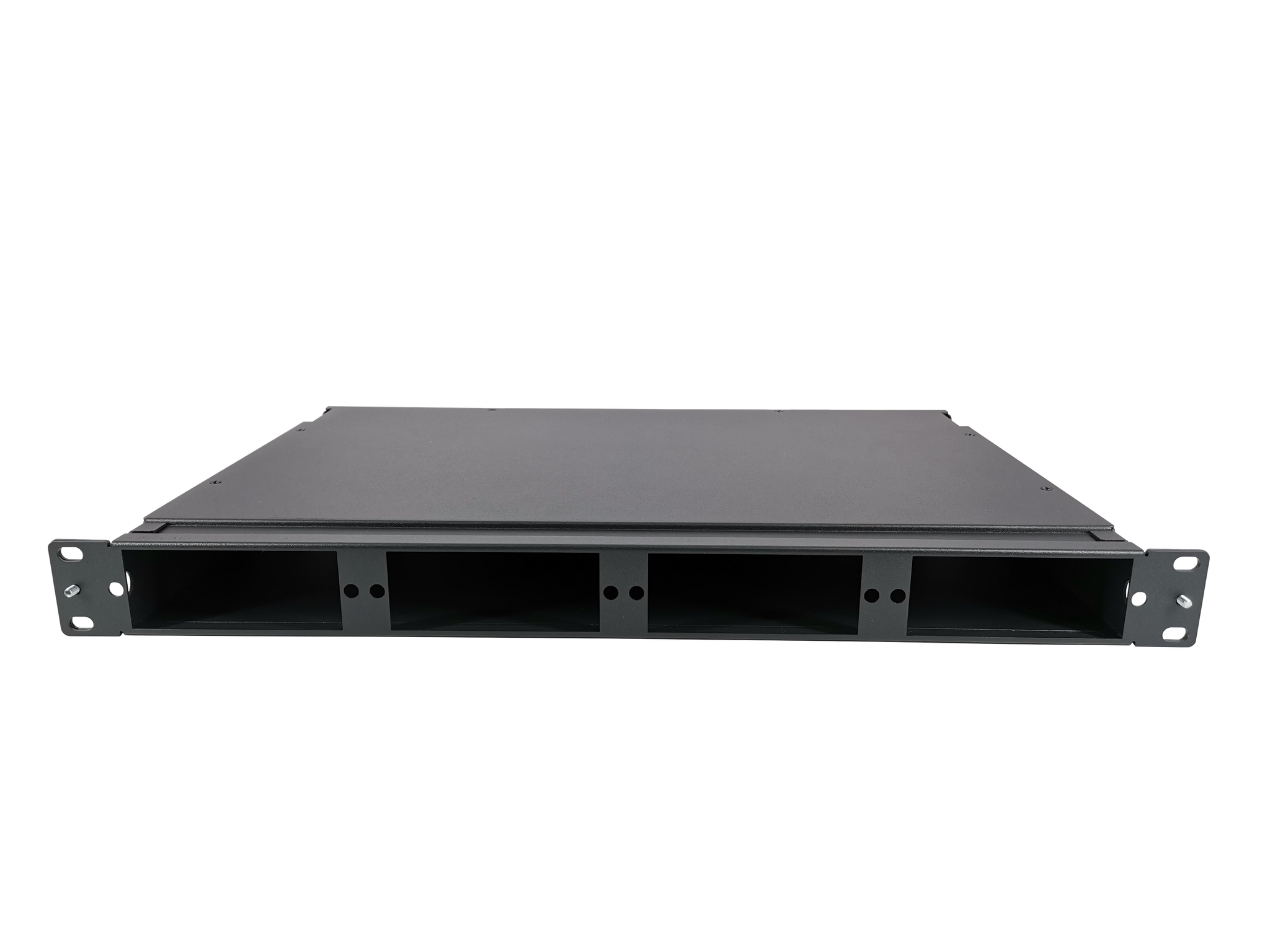

FHD 1U High Density Fiber Enclosure Unloaded, UP to 144 Fibers

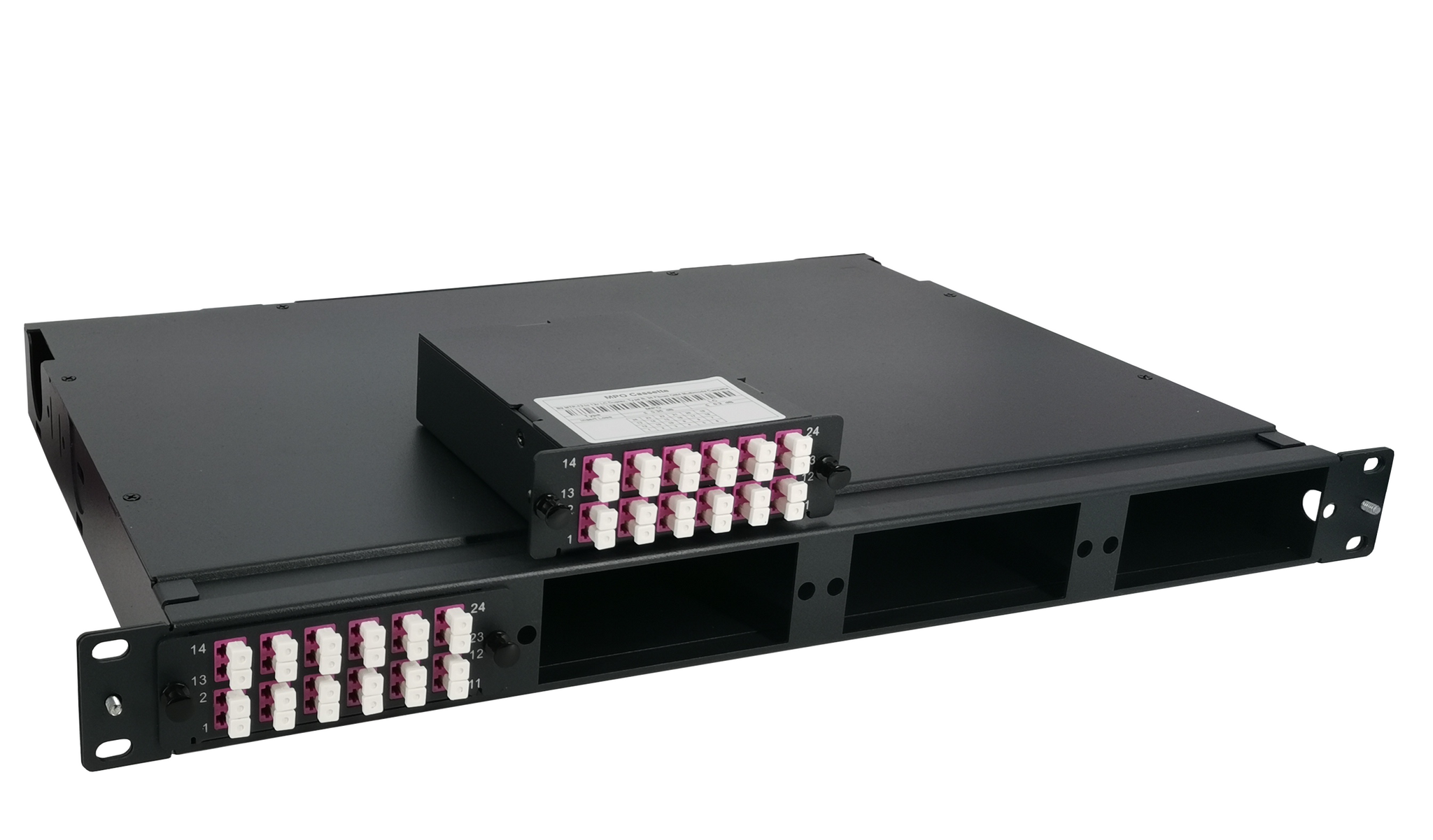

FHD 1U rack mount fiber enclosure, which can house 4pcs FHD series MTP modular cassettes or fiber adapter panels. It provides high density flexible system to maximize rack space utilization and minimize floor space.
Compared with the last generation, it has been upgraded to simplify the operation, the top cover could be tool-less removed, which makes the cable management more convenient.
FHD?High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Product Specification
| No. of Rack Spaces | 1U | Fiber Count | Max. 144 Fibers |
| Enclosure Type | Rack Mountable | Material | 1.2mm SPCC (Black Coating) |
| Installation | Standard EIA 19" Rack Rails | Dimensions (HxWxD) | 1.73''x16.93''x11.17'' (44x430x283.6mm) |
| Compliant | TIA/EIA-568-C.3 | Application | Matching for FHD Series FAPs/Cassettes |
