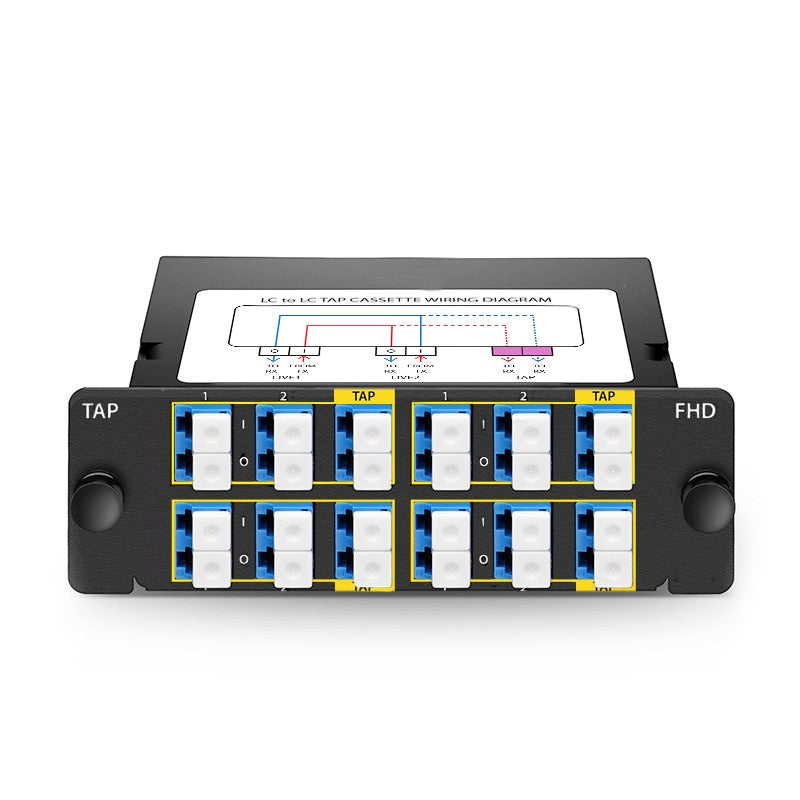

Traffic Access Point (TAP) is a passive monitoring device that passes traffic from the live network to the monitoring devices and provides a demarcation between the live network and monitoring infrastructure. It is designed for use to effectively monitor network traffic whilst optimising performance, are tools that provide users with an understanding of network flow patterns by splitting traffic for monitoring and security without interrupting network traffic.
SPECIFICATION
| Live Ports |
8 |
|---|---|
| TAP Ports |
4 |
| Split Ratio |
50/50 |
| Termination Type |
Front |
| Front Connectivity |
LC UPC Duplex |
| Rear Connectivity |
None |
| Insertion Loss |
≤0.3dB |
| Return Loss |
≥50dB |
| Fiber Length |
1.00±0.10m |
| Glass Fiber |
Corning SMF-28® Ultra |
| Polarity |
Type A |
| Operating Temperature |
-10°C to 60°C |
| Dimensions (HxWxD) |
1.38''x4.29''x4.64'' (35x109x118mm) |
| Fiber Type |
OS2 9/125μm |
| Application |
Data Center LAN/SAN |
