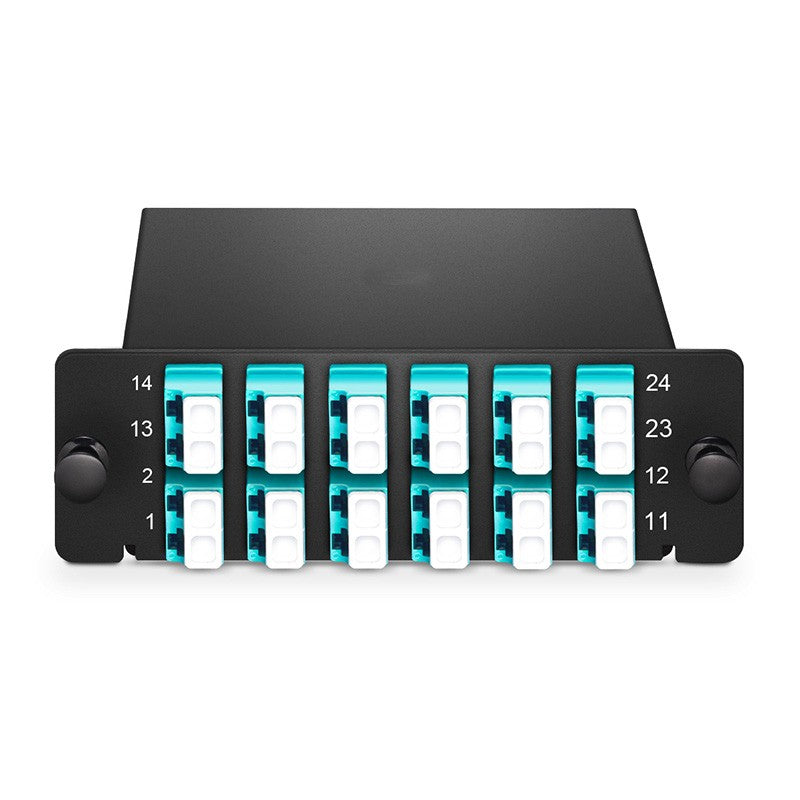

FHD Fiber Splice Cassette, 24 Fibers OM4 Multimode,12 x LC Duplex (Aqua), 0.3dB max

Sale price$87.00


FHD 24 Fibers Optical Splice Cassette, 24 Strands OM4 50/125μm MMF

FHD (High Density) splice cassette modules can house and protect fiber optic splices, guarantee proper fiber cable management and bend radius control, allow for clear labeling and logical organization of the fiber optic splices, and hold and protect up to 24 fusion splices. Splice cassettes eliminate the need for individual splice trays within FHD series rack mount fiber enclosures and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campuses, government installations, data centers, and central offices.


Fiber Count 24 Fibers
Fiber Mode OM4 50/125μm
Front Connector Type LC UPC Duplex (Aqua)
Number of LC Port 12 Ports
Material of Splice Tray
Housing Type
Material of Sleeve
Zirconia Ceramic
Material of Cassette Body
Aluminium (AL5052)
LC Pigtail Length
Fiber Splice Jacket OD
Insertion Loss
Dimensions (HxWxD) 1.38''x 4.29''x 6.29'' (35x 109x 160mm)
RoHS Compliant
Application Matching for FHD Series Enclosures
