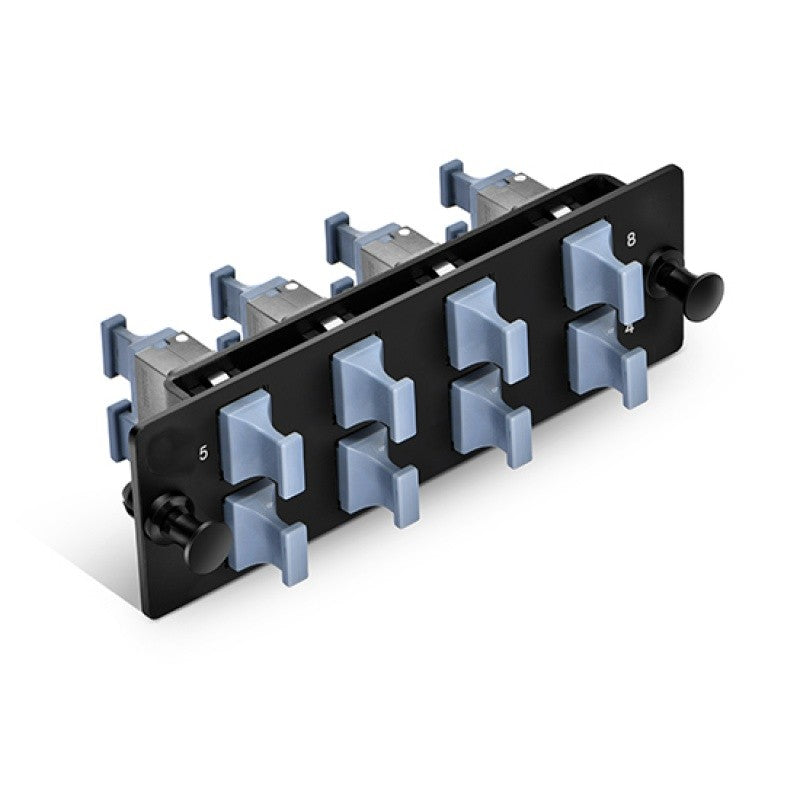

FHD (High Density) series adapter panel pre-loaded with fiber adapters that provides a means to connect backbone-to-backbone or backbone-to-horizontal fiber cabling. Used with FHD® series enclosure and for pre-terminated Plug-n-Play cabling system, it provides a more stable, compact solution for your network. Further, the key up to key up method does not support single mode with standards compliant connector endfaces. The US Conec’s MTP® brand adapters are fully compliant with IEC Standard 61754-7 and TIA 604-5.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
| FORM FACTOR | 8 |
|---|---|
| Adapter Type |
MTP |
| Fiber Mode |
OM3/OM4 |
| Key Orientation |
Aligned |
| Adapter Color |
Charcoal Gray |
| Material of Plate | Steel, Powder-coated Black |
| Durability | ≤500 mating cycles |

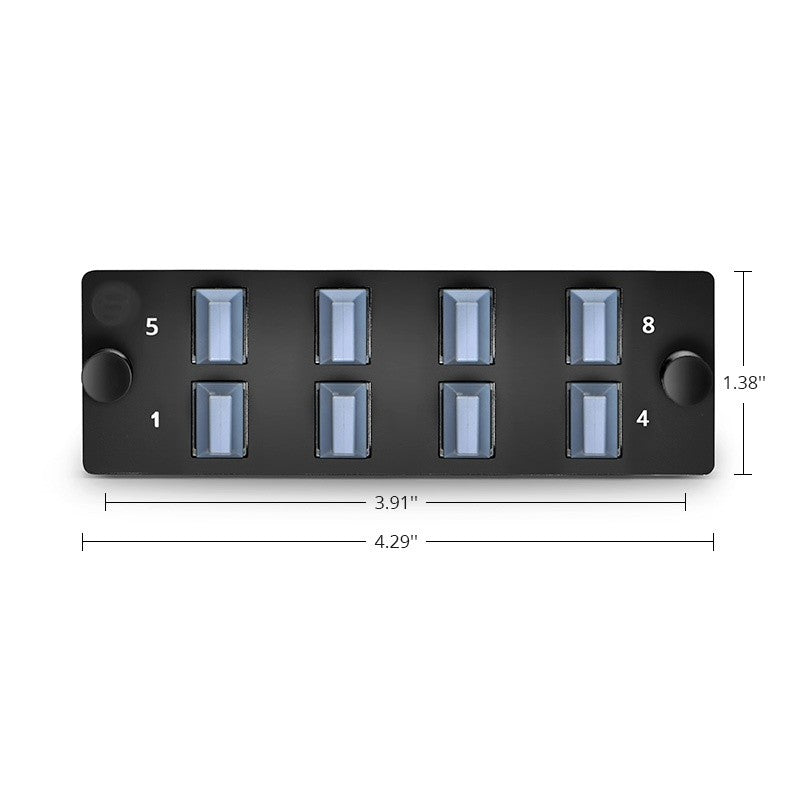

| Dimensions (HxW) | 1.38''x4.29'' (35x109mm) |
| RoHS Compliancy Status |
Compliant |
| Application | Matching for FHD Series |
