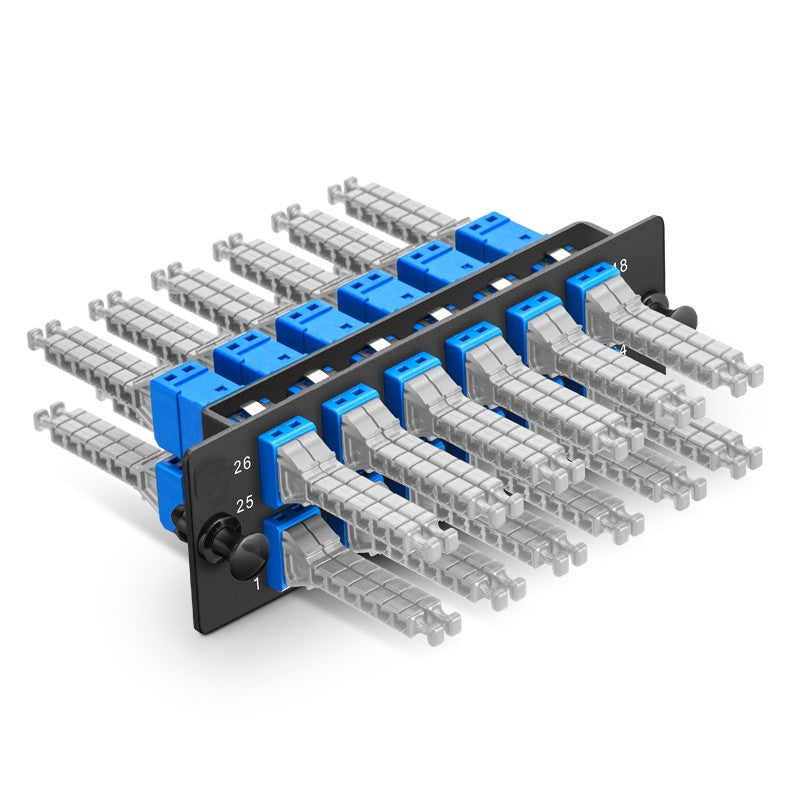

FHD (High Density) series adapter panel pre-loaded with fiber adapters that provides a means to connect backbone-to-backbone or backbone-to-horizontal fiber cabling. The US Conec 2-port adapter is designed to fit through the same panel cutout defined for duplex LC adapters, allowing an instant 2x of the current panel connector density.
QSFP-DD, QSFP28 or QSFP+ transceiver can be directly connected to MDC patch panels by MTP to MDC breakout cables. The panel allows 192 fiber connections to be deployed in the FHD® series rack unit (1 RU).
SPECIFICATION
| Number of Ports |
12x MDC-2 |
|---|---|
| Fiber Count |
48 Fibers |
| Adapter Type | MDC Duplex (Blue) |
| Fiber Mode | OS2 9/125μm |
| Material of Sleeve | Zirconia Ceramic |
| Material of Plate | Steel, Powder-coated Black |
| Durability | ≤500 mating cycles |

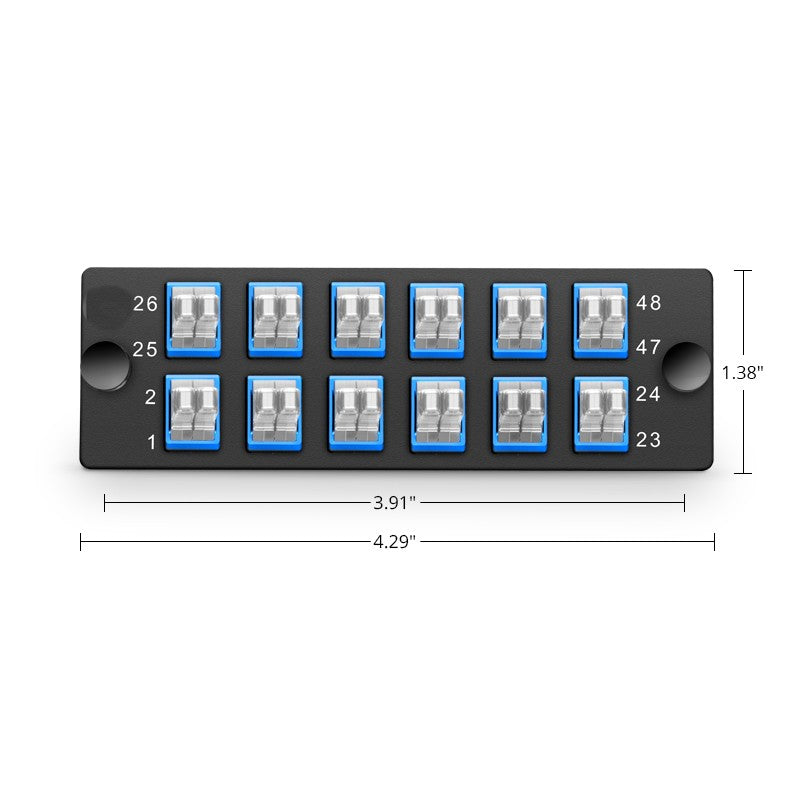

| Dimensions (HxW) | 1.38''x4.29'' (35x109mm) |
| RoHS Compliancy Status |
Compliant |
| Application | Matching for FHD Series |
