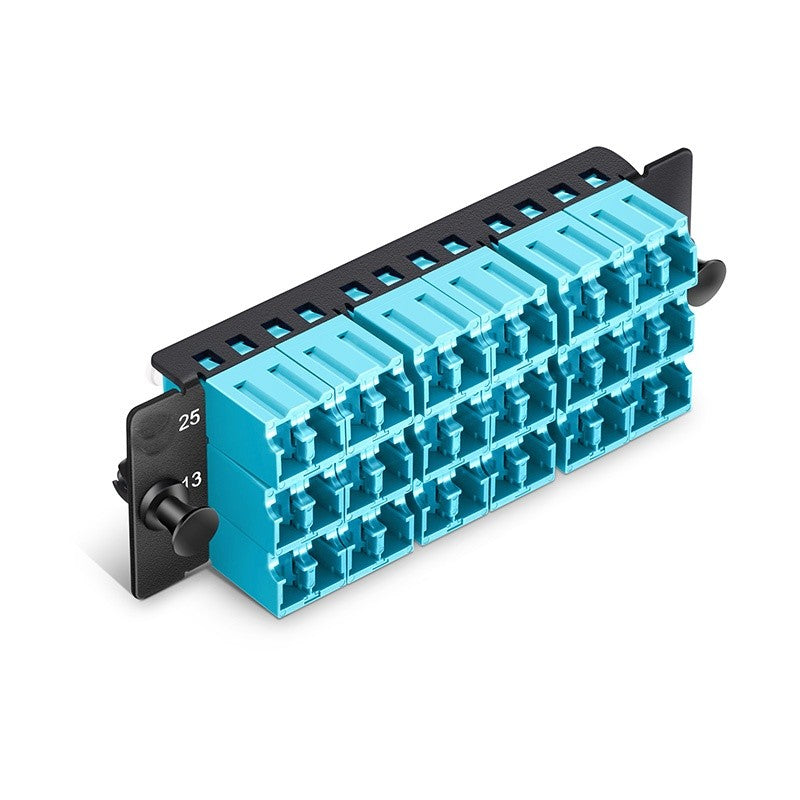

FHD (High Density) series adapter panel pre-loaded with fiber adapters provides a means to connect backbone-to-backbone or backbone-to-horizontal fiber cabling. Used with FHD® series enclosure and for pre-terminated Plug-n-Play cabling system, it provides a more stable, compact solution for your network.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
|
Number of Ports
|
18 |
|---|---|
| Fiber Count |
36 Fibers |
| Adapter Type |
Shuttered LC Duplex (Aqua) |
| Fiber Mode |
OM4 (OM3) 50/125μm |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Plate |
Steel, Powder-coated Black |
| Durability | ≤500 mating cycles |

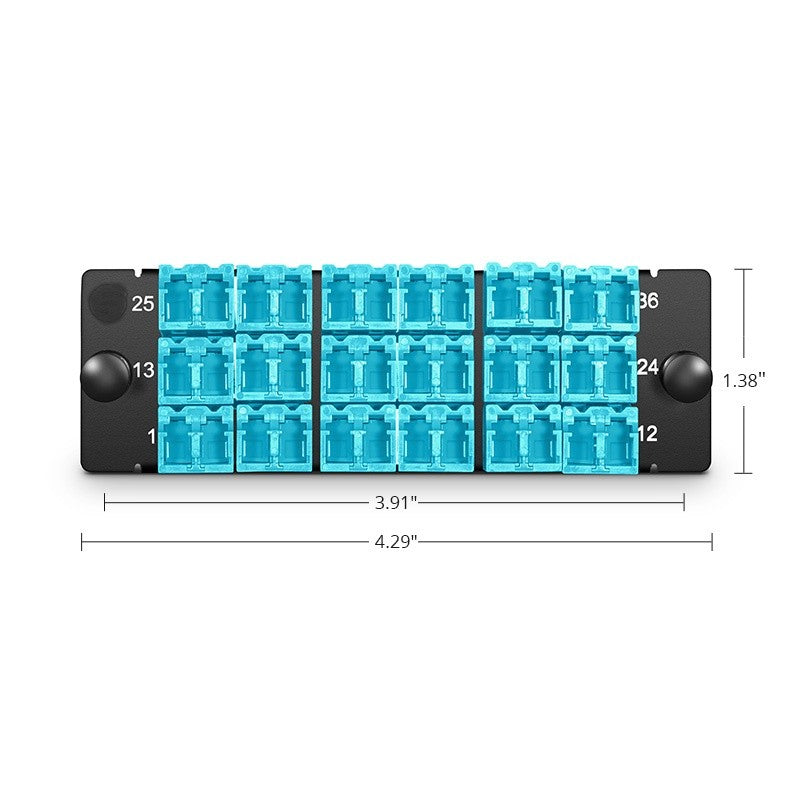

| Dimensions (HxW) | 1.38''x4.29'' (35x109mm) |
| RoHS Compliancy Status |
Compliant |
| Application | Matching for FHD Series |
