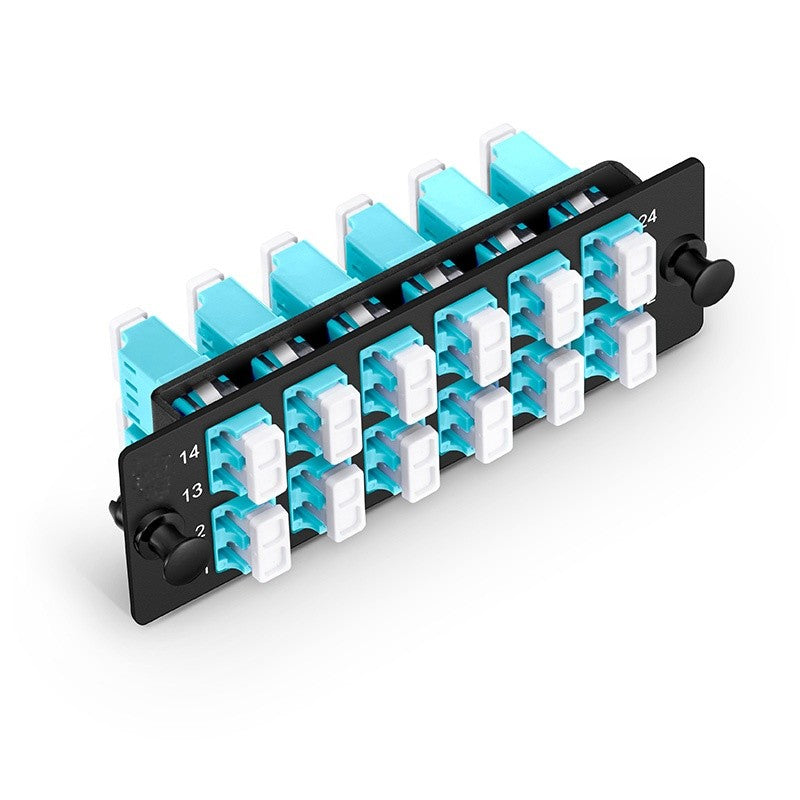

FHD (High Density) series adapter panel pre-loaded with fiber adapters provides a means to connect backbone-to-backbone or backbone-to-horizontal fiber cabling. Used with FHD® series enclosure and splice tray for fusion splicing application or pre-terminated Plug-n-Play cabling system, it provides a more stable, compact solution for your network.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
SPECIFICATION
| FORM FACTOR | 12 |
|---|---|
| Fiber Count |
24 Fibers |
| Adapter Type | LC Duplex (Aqua) |
| Fiber Mode | OM4 (OM3) 50/125μm |
| Material of Sleeve | Zirconia Ceramic |
| Material of Plate | Steel, Powder-coated Black |
| Durability | ≤500 mating cycles |

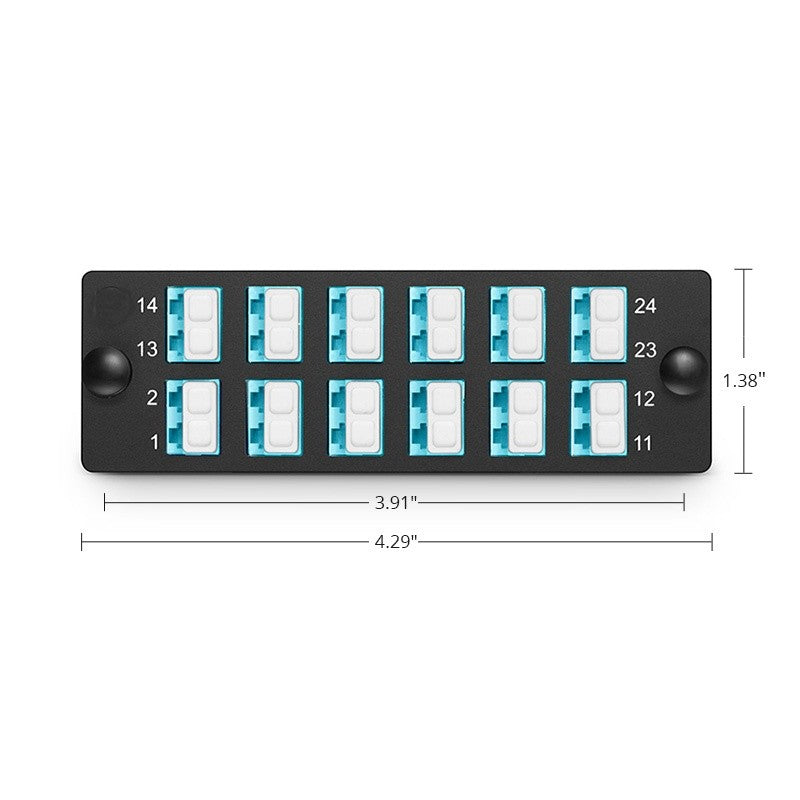

| Dimensions (HxW) | 1.38''x4.29'' (35x109mm) |
| RoHS Compliancy Status |
Compliant |
| Application | Matching for FHD Series |
