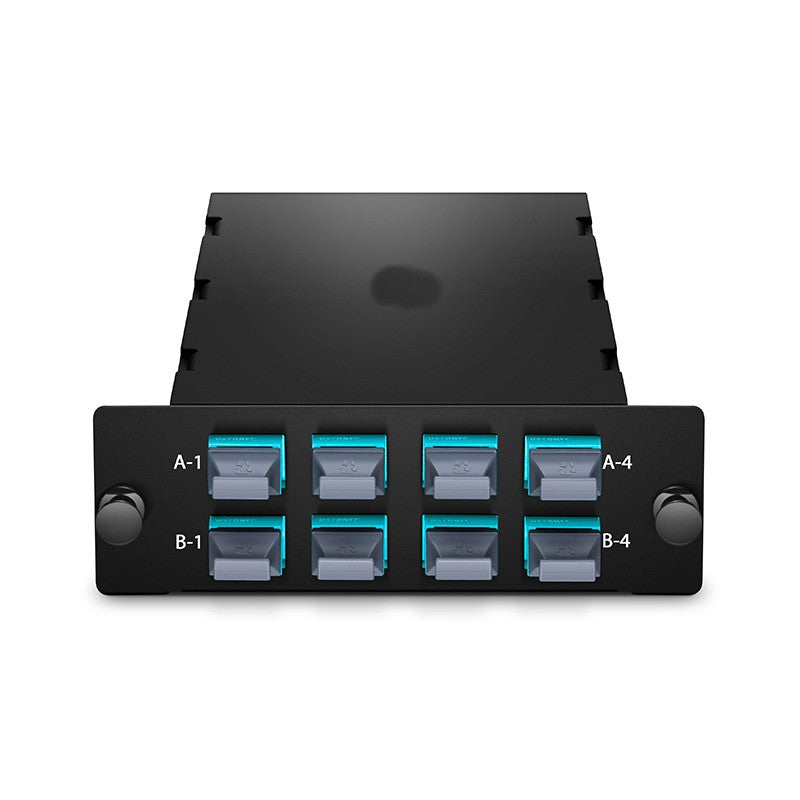

FHD (High Density) series MTP® mesh cassettes feature eight rear 8-fiber MTP® ports connection and eight 8-fiber MTP® ports in front. The MTP®-8 mesh cassette is ideal for deployments including 40G to 10G, 100G to 25G and 400G to 100G. Providing future-proof Ethernet and fiber channel networks at continuously rising transmission speeds in data centers makes mesh cassettes almost indispensable for the required high-performance fully meshed network infrastructures in modern data centers.
Using mesh cassettes to simplify complex network architectures in modern spine-leaf. The staggered line sequence in the MTP mesh cassette adapts to the channelization setting of switch ports, which greatly improves the link redundancy without additional LC fiber cables.
SPECIFICATION
| Fiber Count | 64 Fibers |
|---|---|
| Fiber Mode | OM4 50/125μm |
| Front Connector Type | US Conec MTP®-8 UPC (Pinned) |
| Number of Front MTP® Port |
8 Ports |
| Rear Connector Type | US Conec MTP®-8 UPC (Pinned) |
| Number of Rear MTP® Port |
8 Ports |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Universal |

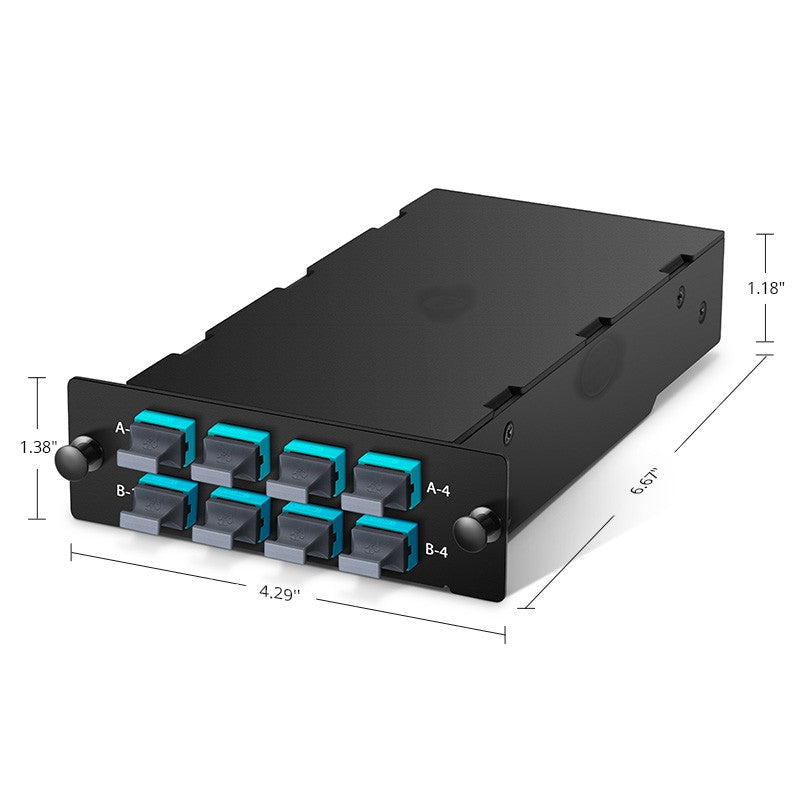

| Dimensions (HxWxD) | 1.38''x4.29''x6.67'' (35x109x169.4mm) |
| Insertion Loss |
≤0.35dB |
| Return Loss |
≥60dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
|
Scenario
|
Data Center LAN/SAN |
