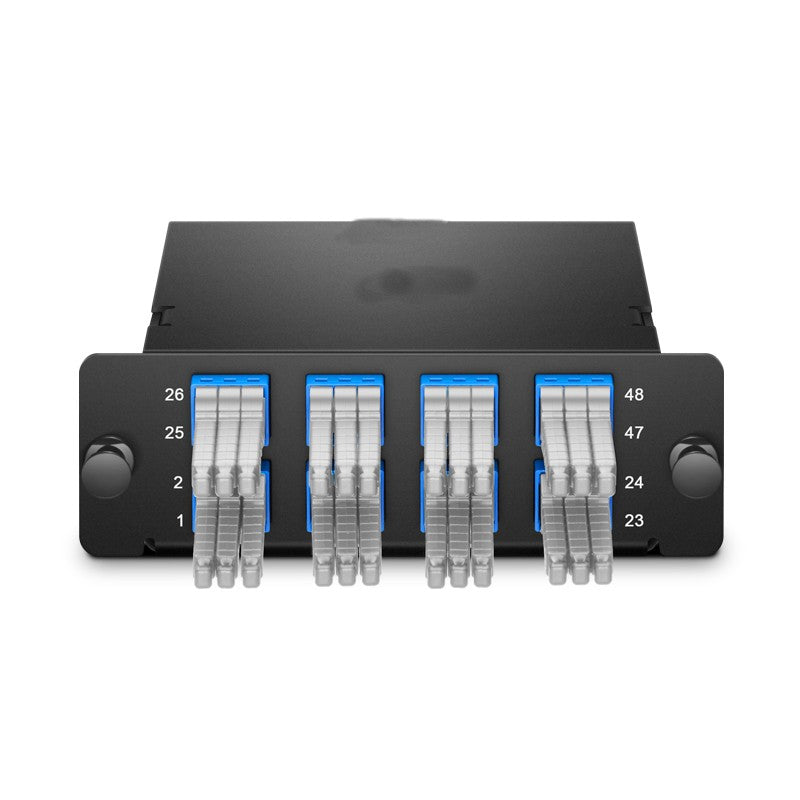

FHD (High Density) series MTP® fiber cassette modules offer 12-fiber MTP® adapters on the rear of the units routed to US Conec 3-port duplex MDC adapters on the front patch field. The US Conec 3-port adapter is designed to fit through the same cassette cutout defined for duplex LC adapters, allowing an instant 3x of the current cassette connector density.
QSFP-DD, QSFP28 or QSFP+ transceiver can be directly connected to MDC cassettes by MTP to MDC breakout cables. The cassette allows 192 fiber connections to be deployed in the FHD® series rack unit (1 RU).
SPECIFICATION
| Fiber Count | 48 Fibers |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Front Connector Type | LC UPC Duplex (Blue) |
| Number of MDC Port |
8x MDC-3 |
| Rear Connector Type | US Conec MTP® APC (Pinned) |
| Number of MTP® Port |
4 Ports |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Type A |

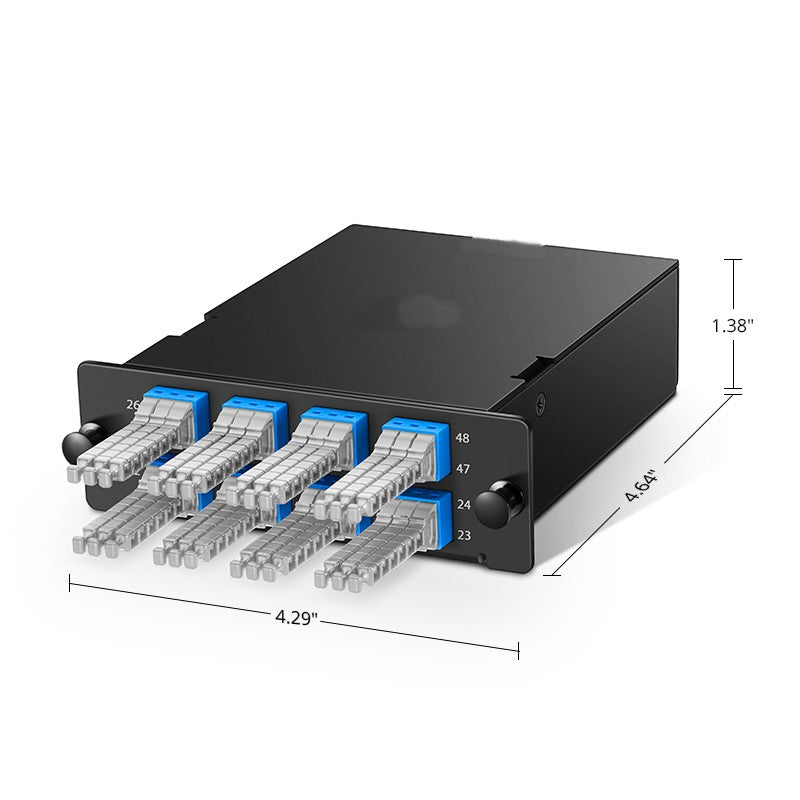

| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, MDC≤0.3dB |
| Return Loss |
MTP≥60dB, MDC≥50dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
