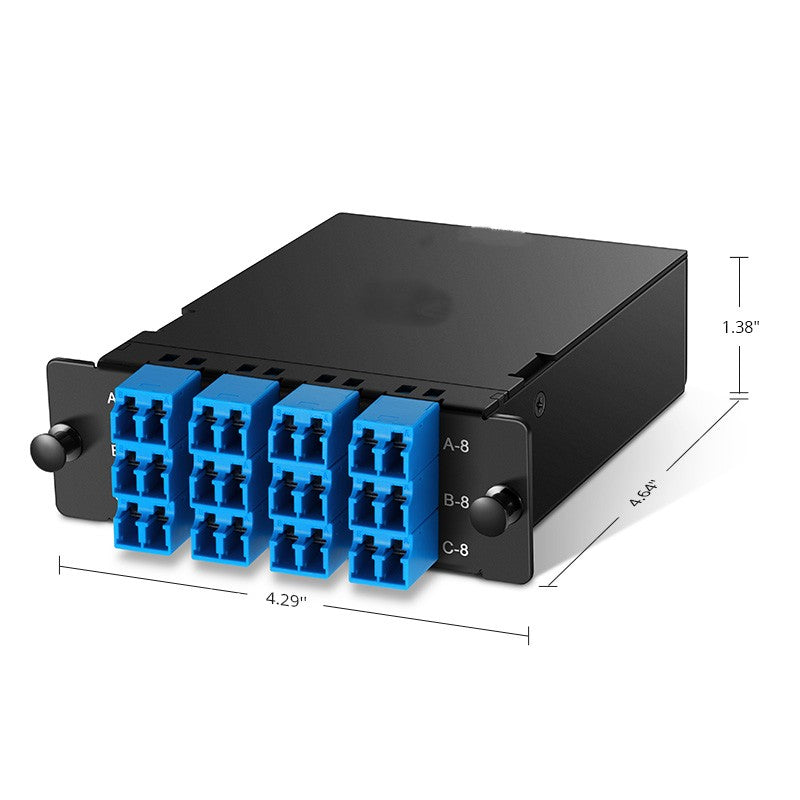

FHD (High Density) series MTP® fiber cassette modules offer an 8-fiber MTP® adapter on the rear of the units routed to 12 duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications. The MTP®-8 cassette is ideal for deployments including 40G to 10G, 100G to 25G and 400G to 100G. Universal polarity to be used at both ends of a Method B trunk reduces the complexity of a fiber network, ensuring consistent polarity, and streamlining network maintenance.

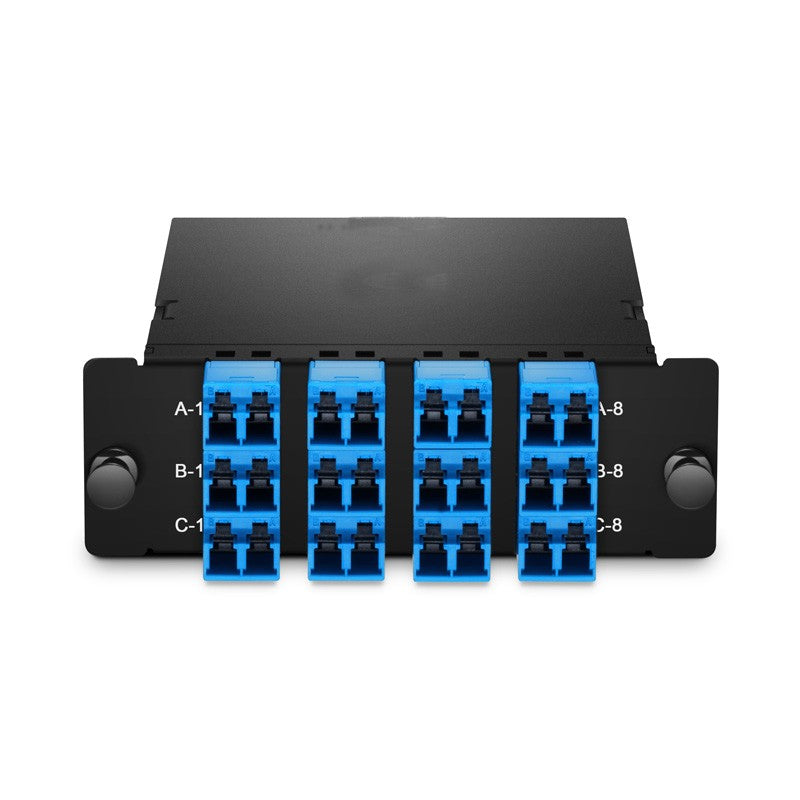

Corresponding to the line sequence of the rear MTP adapters, the front LC adapters are optimized to be arranged horizontally in each group, which conforms to the customer's usage behaviour. The cassette is suitable for conventional 3-tier cabling schemes and spine-leaf cabling schemes. This Base-8 MTP® fiber cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable
SPECIFICATION
| Fiber Count | 24 Fibers |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Front Connector Type | LC UPC Duplex (Blue) |
| Number of LC Port | 12 Ports |
| Rear Connector Type | US Conec MTP®-8 APC (Pinned) |
| Number of MTP® Port |
3 Ports |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Universal |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
| Return Loss |
MTP≥60dB, LC≥50dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
