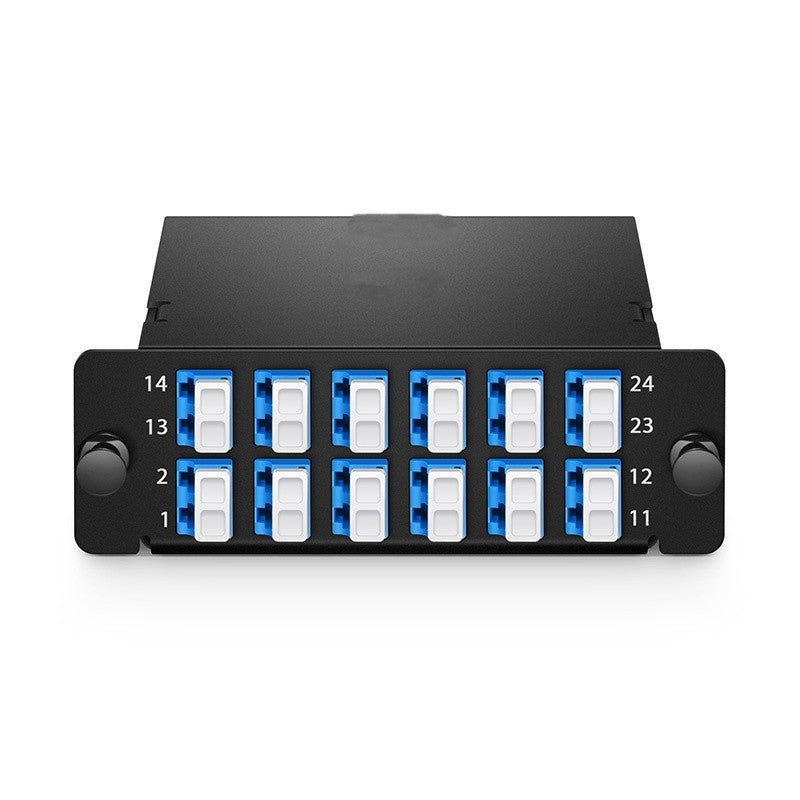

FHD (High Density) series MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
The MTP®-12 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 96 fiber connections to be deployed in the FHD® series rack unit (1 RU).
SPECIFICATION
| Fiber Count | 24 Fibers |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Front Connector Type | LC UPC Duplex (Aqua) |
| Number of LC Port | 12 Ports |
| Rear Connector Type | US Conec MTP® UPC (Pinned) |
| Number of MTP® Port |
2 Port |
| MTP Adapter | Key Up to Key Down |
| Housing Type |
Cassette |
| Material of Sleeve |
Zirconia Ceramic |
| Material of Cassette Body |
Aluminium (AL5052) |
| Polarity |
Type A |

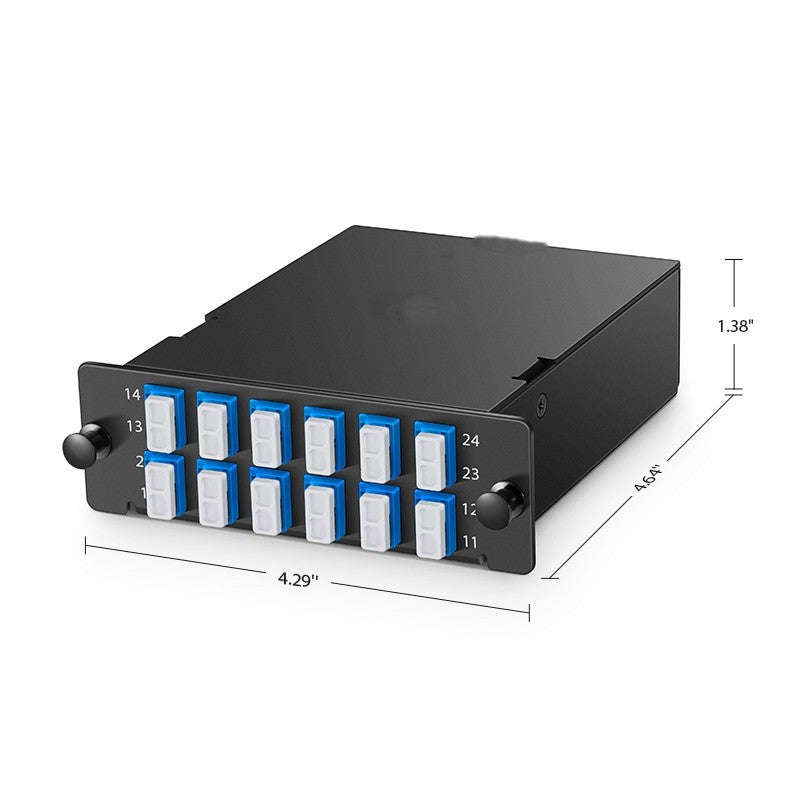

| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
| Return Loss |
MTP≥60dB, LC≥50dB |
| Standard |
RoHS Compliant |
| Application |
Matching for FHD Series Enclosures |
