Description

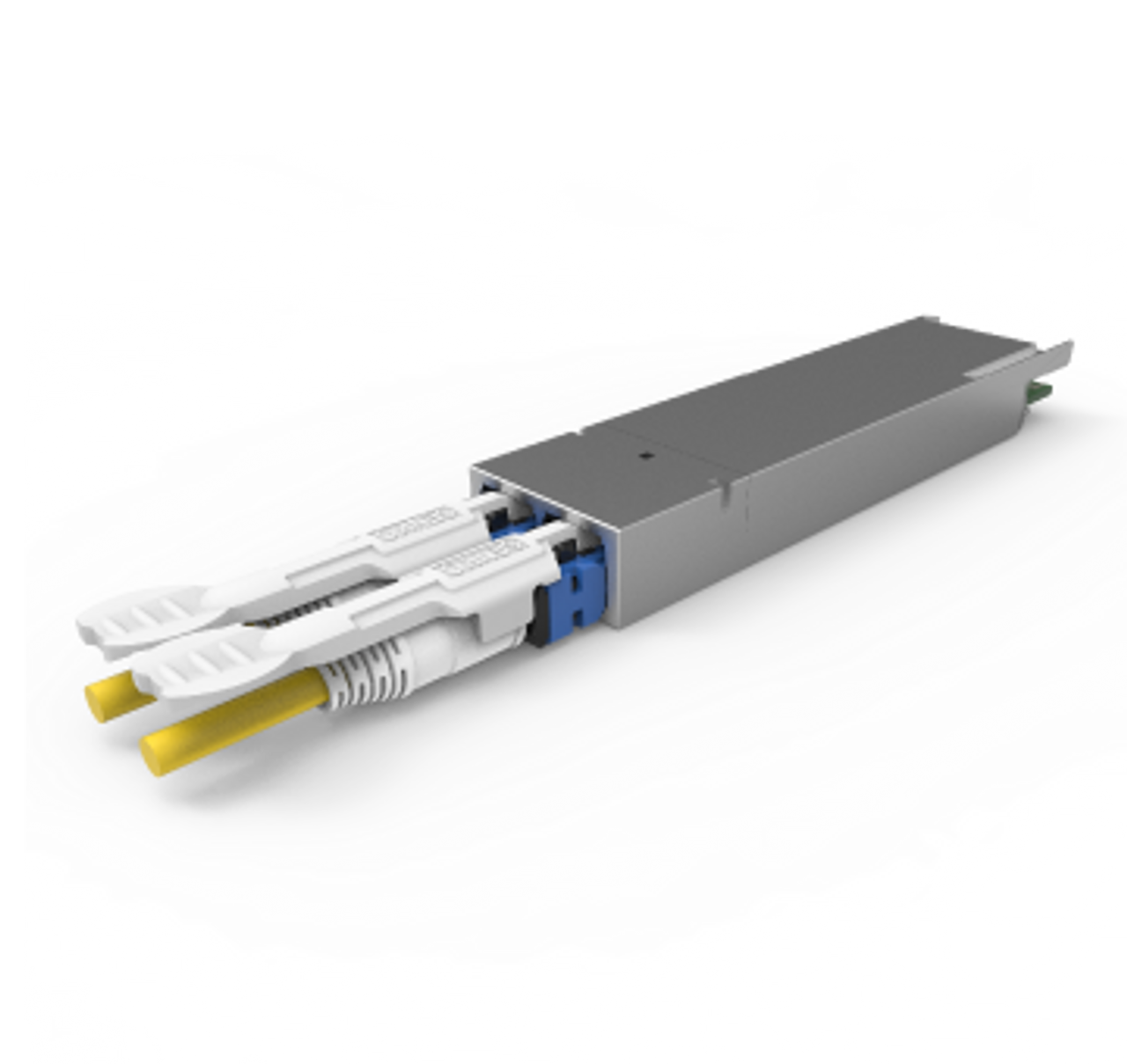

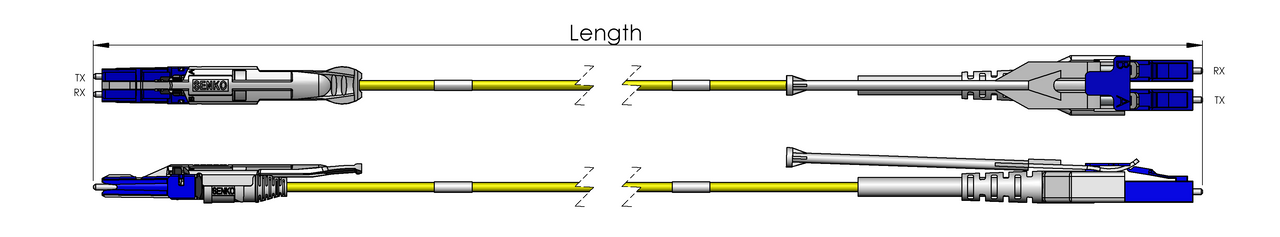

CS Connector Designed for next gen 200/400G transceiver QSFP-DD and OSFP to Senko LC Uniboot Cable
Features
- 40% size reduction compared to LC Duplex
- Connector adopted by QSFP-DD, OSFP and COBO
- Performance exceeds LC

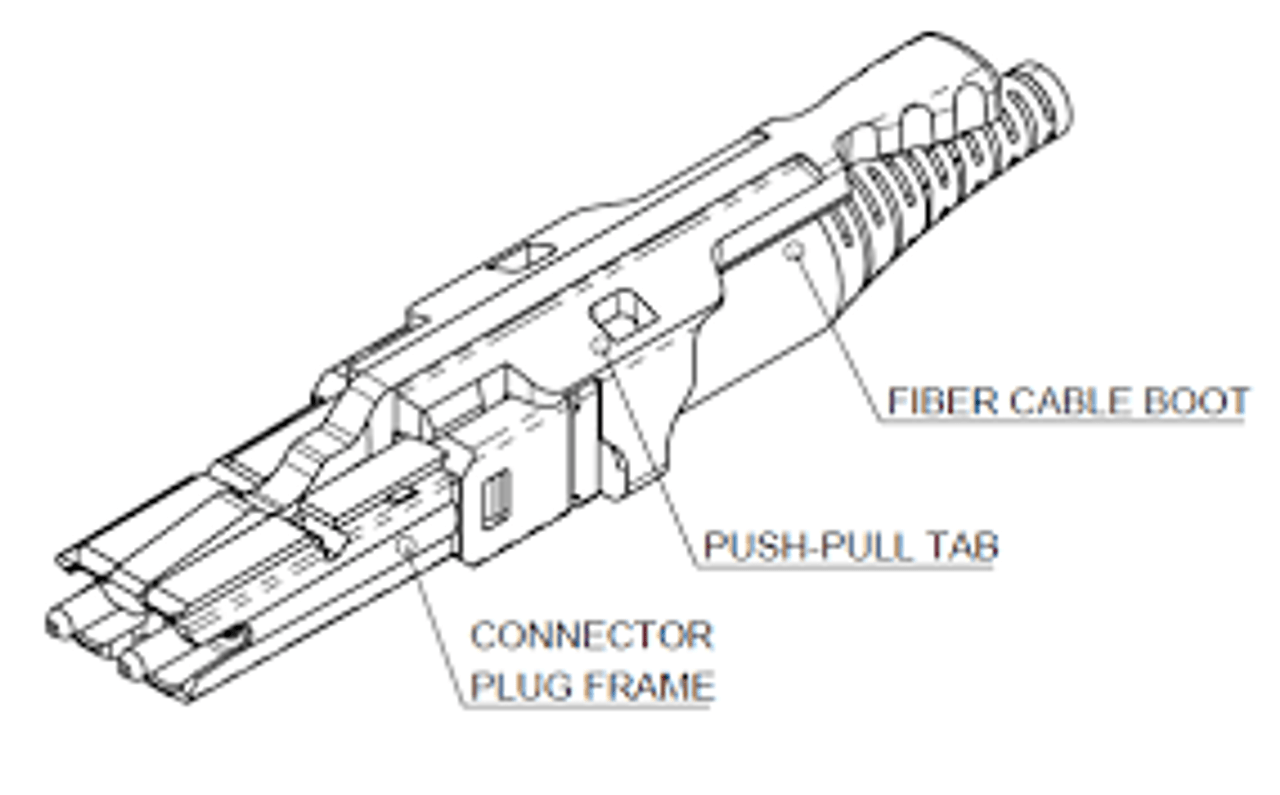

- Push/Pull tab for a better usability in high density applications
for a better usability in high density applications - Double the density in patch panel compared to LC
- IEC random mating Grade B

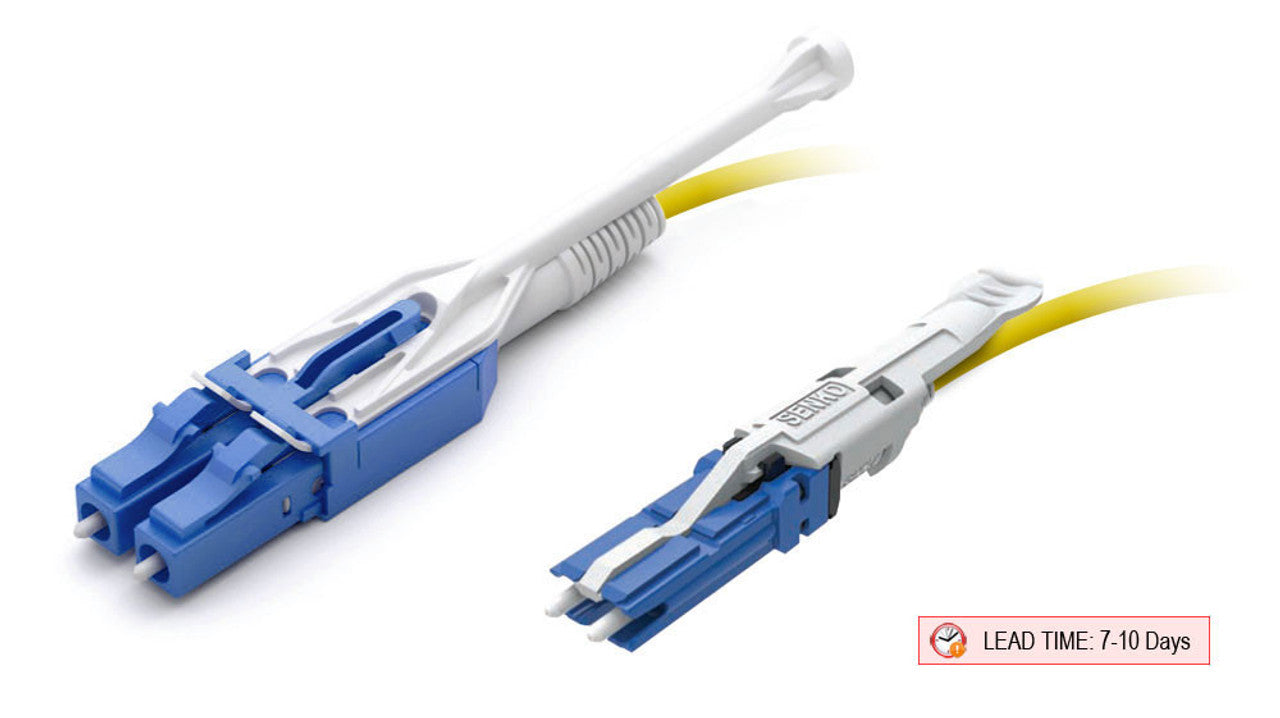

The Senko CS-LC Uni-boot Singlemode 9/125 OS2 Fiber Optic Patch Cableis a perfect combination of high performance, low data loss and cost efficiency. Featuring a rigid Push-Pull Tab that allows for connector insertion as well as diconnect. When it comes to High Density Data Center Applicaions, this is a cable that can easily match the demands of your business and budget.
The CS-LC fiber optic cable features a UPC polish and can send data over a 9/125 micron glass fiber 1Gbps link a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data a distance of up to 5,000 meters at a 1310nm wavelength or up to 30,000 meters at a 1550nm wavelength.
This CS-LC singlemode cable, along with all other LightWave brand fiber optic patch cables, is assembled to meet and exceed industry performance standards, and each product is individually tested to make sure you receive the highest possible quality, and those test results will be included with your cable.
| Connector Side A |
CS/UPC | Connector Side B |
LC/UPC |
| Ferrule Type Side A |
1.25mm | Ferrule Type Side B |
1.25mm |
| Insertion Loss Maximum Side A |
≤0.20dB | Insertion Loss Maximum Side B |
≤0.20dB |
| Insertion Loss Typical |
0.08dB | Insertion Loss Typical |
0.08dB |
| Return Loss | ≥60dB | Return Loss | ≥60dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 2 | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Polarity | Flipped (Type C) | Cable Outer Diameter | 1.8mm Duplex Zip |
| Cable Jacket | OFNR Riser | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| Wavelength |
1 Gb Distance Max. |
Wavelength |
10 Gb Distance Max. |
| 1310nm | > 25,000 Meters | 1310nm | 10,000 - 25,000 Meters |
| 1550nm | > 40,000 Meters | 1550nm | 40,000 Meters |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
Optical Characteristics
| Fiber Description & Type | Typical Attenuation (dB/km)) | 1 Gbps Ethernet Distance (Meters) | 10 Gbps Ethernet Distance (Meters) | ||||
| Singlemode, Tight Buffer | 1310nm | 1383nm | 1550nm | 1625nm | 1310nm | 1310nm | 1550nm |
| 900 Micron | 0.65 | --- | 0.65 | --- | 10,000 | 5,000 | 30,000 |
| 2mm Breakout | 1.00 | --- | 1.00 | --- | 10,000 | 5,000 | 30,000 |
| NOTES: | Non-standard colors are special order custom cables and require a 5-7 day lead time. These are Non-Cancelable and Non-Returnable once they go into production. Dust caps on the connector tips are there for the protection of the fiber in the ferrules. |
