Description
CS Connector Designed for next gen 200/400G transceiver QSFP-DD and OSFP to Senko LC Uniboot Cable
Features
- 40% size reduction compared to LC Duplex

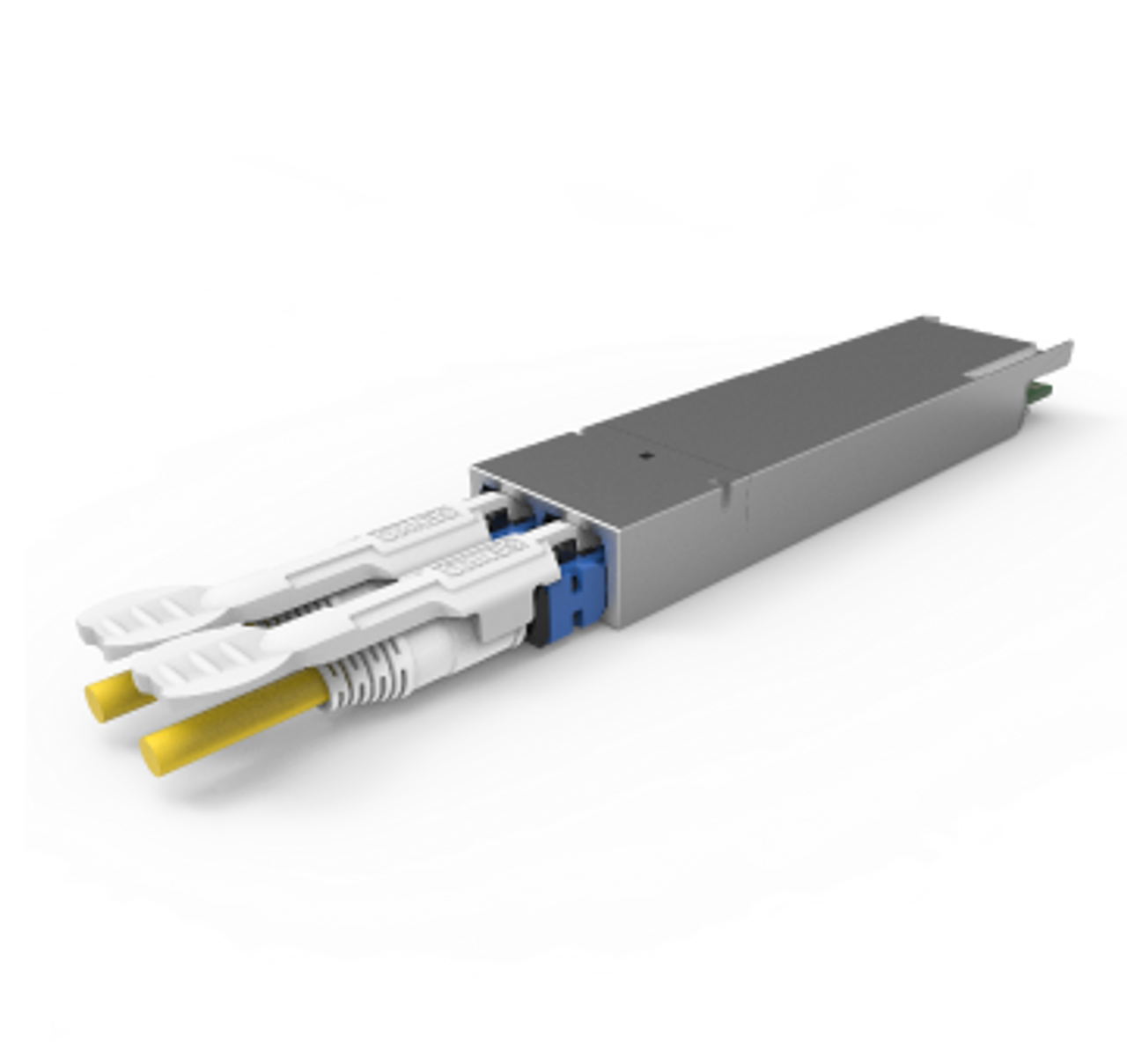

- Connector adopted by QSFP-DD, OSFP and COBO
- Performance exceeds LC

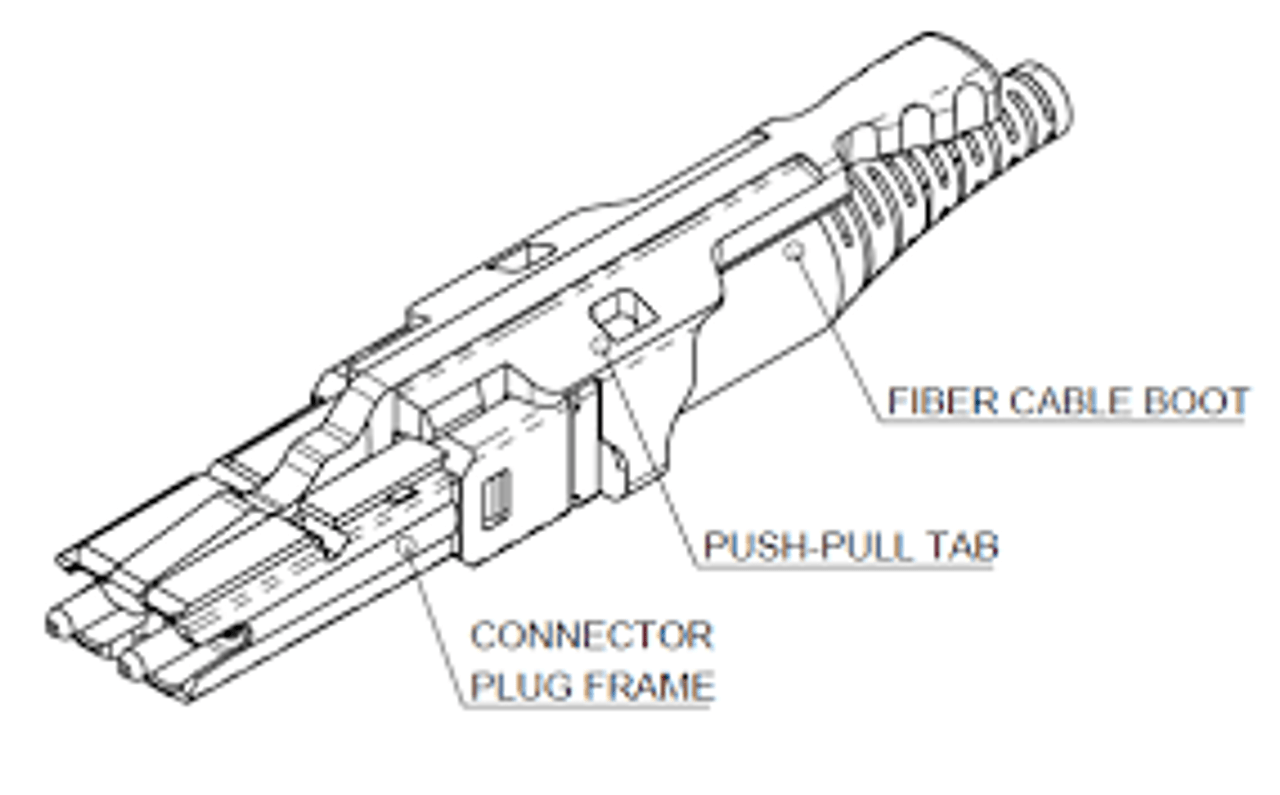

- Push/Pull tab for a better usability in high density applications
for a better usability in high density applications - Double the density in patch panel compared to LC
- IEC random mating Grade B

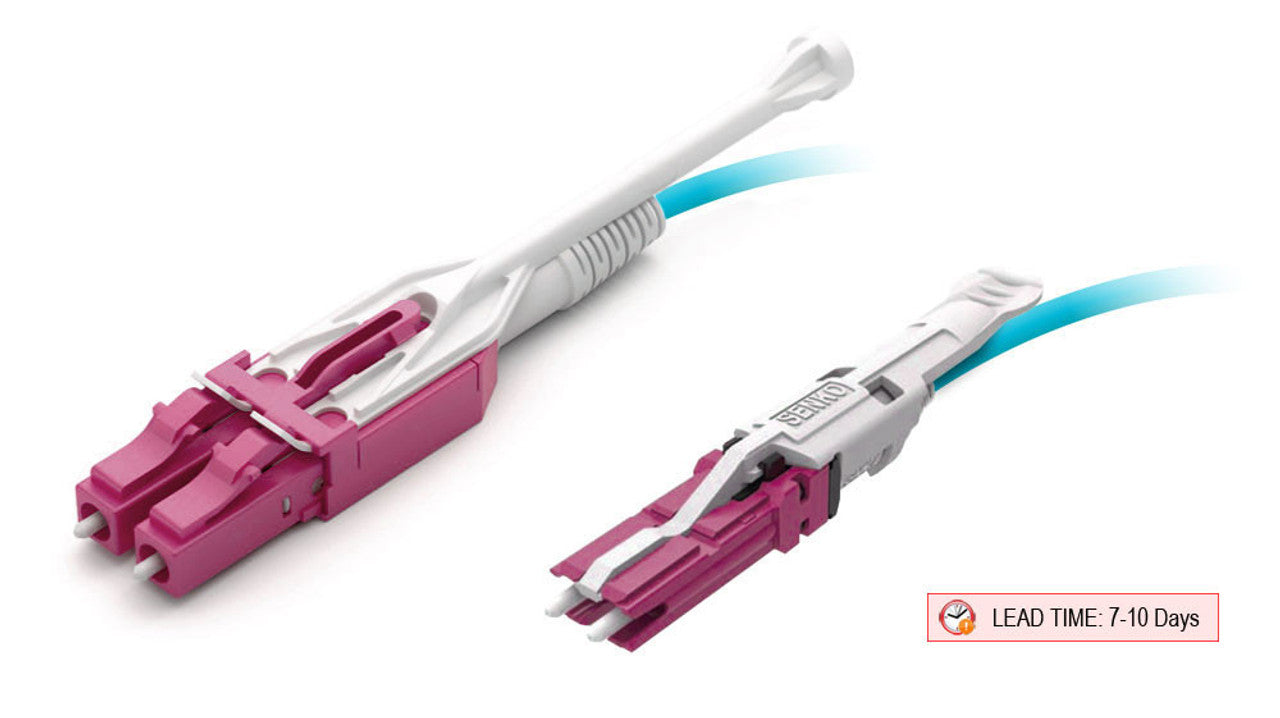

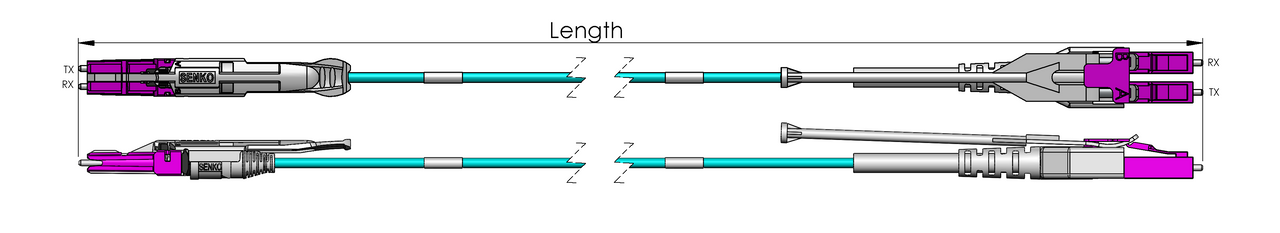

The Senko CS-LC Uni-boot Multimode 50/125 OM4 Fiber Optic Patch Cableis a perfect combination of high performance, low data loss and cost efficiency. Featuring a rigid Push-Pull Tab that allows for connector insertion as well as diconnect. When it comes to High Density Data Center Applicaions, this is a cable that can easily match the demands of your business and budget.
The CS-LC fiber optic cable in OM4 multimode configuration helps you achieve data transfers over a 50/125 micron glass fiber 1Gbps link a distance of up to 1100 meters at a wavelength of 850nm, and a distance of up to 550 meters at a wavelength of 1300nm. For a 10Gbps link, you can transfer data a distance of up to 550 meters at an 850nm wavelength.
Each and every LightWave brand cable goes through rigorous inspection to ensure quality that meets customer demands, and this CS-LC fiber patch cable is no exception. All parts are assembled to industry standards, in order to bring you the best product possible, and we include the test results of each cable in its packaging.
| Connector Side A |
CS/UPC | Connector Side B |
LC/UPC |
| Ferrule Type Side A |
1.25mm | Ferrule Type Side B |
1.25mm |
| Insertion Loss Maximum Side A |
≤0.20dB | Insertion Loss Maximum Side B |
≤0.20dB |
| Insertion Loss Typical |
0.08dB | Insertion Loss Typical |
0.08dB |
| Return Loss | ≥20dB | Return Loss | ≥20dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 2 | Fiber Grade | Corning ClearCurve Glass |
| Polarity | Flipped (Type C) | Cable Outer Diameter | 1.8mm Duplex Zip |
| Cable Jacket | OFNR Riser | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| 40 GbE Distance Max. | 100 GbE Distance Max. | 40G-SWDM4 | 100G-SWDM4 |
| 150 Meter | 150 Meter | 400 Meter | 100 Meter |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
Optical Characteristics
| Optical Characteristics | 50/125 OM4 | |
| Maximum Finished Cable Attenuation Coefficient | @850nm | 3.0 dB/km |
| @1300nm | 1.0 dB/km | |
| Overfill Launch Bandwidth | @850nm | 1500 MHz.km |
| @1300nm | 500 MHz.km | |
| Laser Bandwidth | @850 | 4700 MHz.km |
| Gigabit Ethernet Link Length (1 Gbps) | 1000 BASE-SX (850nm) | 1100 Meters |
| 1000 BASE-SX (1300nm) | 550 Meters | |
| Gigabit Ethernet Link Length (10 Gbps) | 1000 BASE-SX (1300nm) | 550 Meters |
| NOTES: | Non-standard colors are special order custom cables and require a 5-7 day lead time. These are Non-Cancelable and Non-Returnable once they go into production. Dust caps on the connector tips are there for the protection of the fiber in the ferrules. |
