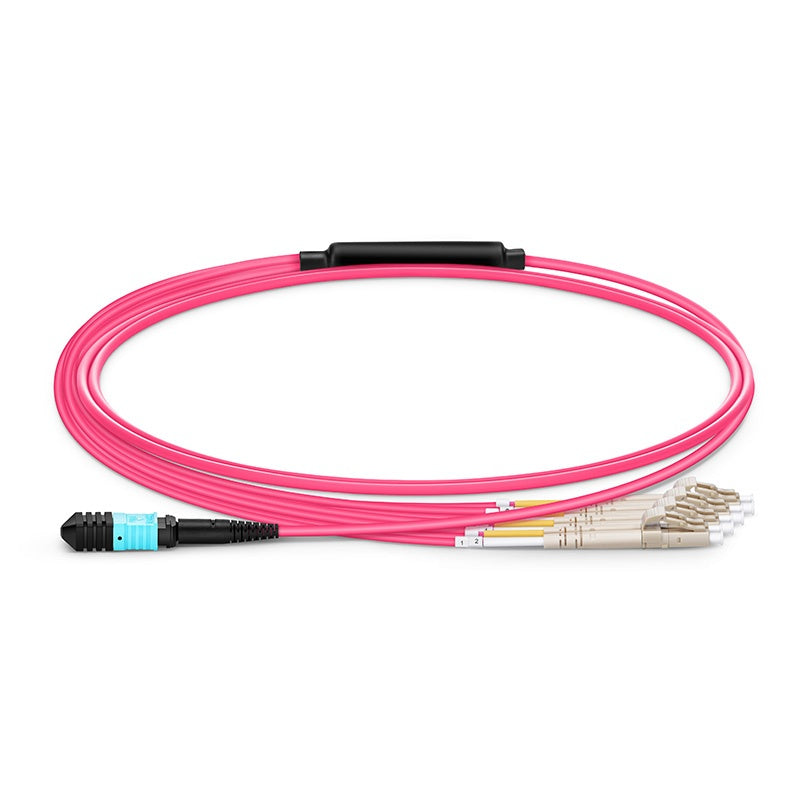

90m (295.28ft) Senko MPO Female to 4 LC 8 Fibers Type B LSZH OM4 50/125 Multimode Elite Breakout Cable, Magenta


Length:: 90m (295.28ft)
Price:
Sale price$333.20

Description

MPO Female to LC UPC Duplex OM4 Multimode Breakout Cable

MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO Plus connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Please note: MPO Plus is a registered trademark of Senko Advanced Components. Senko MPO Plus connectors are fully compliant with the MPO standards, which are enhanced in the areas of mechanical durability, product features and most importantly the optical performance of the MT ferrule itself.

SPECIFICATION

Connector A Senko MPO Plus® Female (Pinless)
Fiber Mode OM4 50/125μm
Glass Fiber00 Corning SMF-28® Ultra
MTP Connector IL 0.35dB Max (0.15dB Typ.)
MTP Connector RL ≥60dB
Attenuation at 1310nm00 ≤0.32dB/km
Cable Jacket
LSZH
Jacket OD 3.0mm
Installation Tensile Load 66N



Storage Temperature -40 to +85°C (-40 to 185℉)
Connector B LC UPC Duplex
Wavelength 850/1300nm
Fiber Grade00 G.657.A1 (Compatible with G.652.D)
LC Connector IL
≤0.3dB
LC Connector RL ≥50dB
Attenuation at 1550nm00
≤0.18dB/km
Fiber Count 8 Fibers
Fan-Out Diameter 2.0mm
Tensile Strength (Long/Short Term) 80/240N
Operating Temperature
-10 to +70°C (14 to 158℉)
