Description

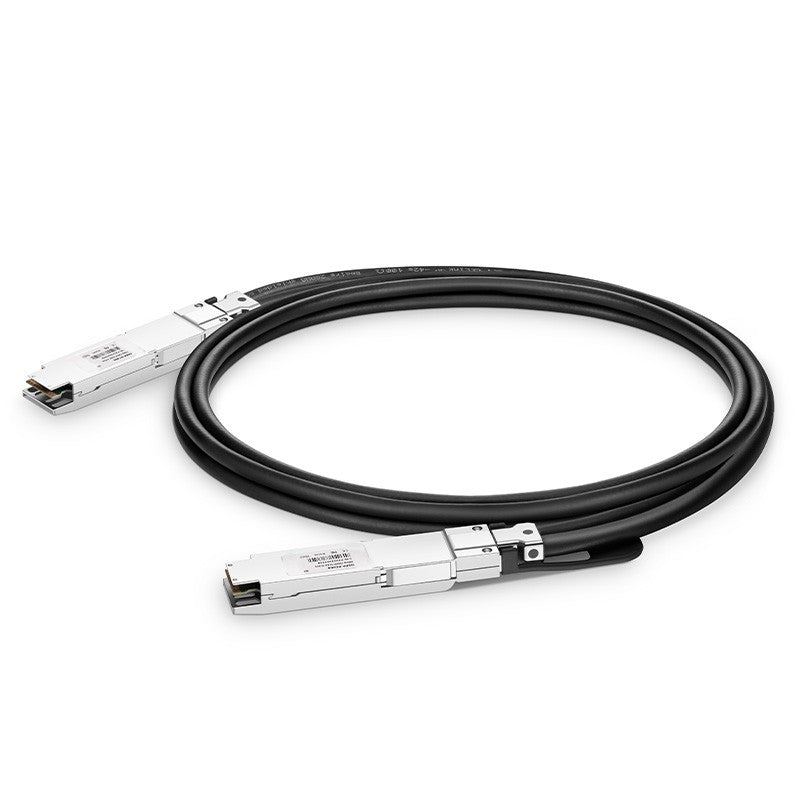

800G FINNED-TOP OSFP DACPassive Copper Cable, 0.5 - 2 m
- Universal Direct Attached Cable (DAC), 0.5 - 2 m
- Use 3CBOX to configure to almost any vendor
- Finned-Top OSFP to Finned-Top OSFP
- PAM4 modulated signal
- Supported Datarate 850 Gbit/s
- Modules are permanently attached to each end
- Low power consumption < 0.2 W (less than 0.1 W per terminal)
- Connect different host systems by configuring each side individually
SPECIFICATION
| TYPE | DAC |
|---|---|
| FORM FACTOR | OSFP to OSFP |
| INTERFACE | Direct Attached Cable |
| CABLE TYPE | passive Twinax |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 850 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | not implemented |
| CDR | none |
| MODULATION |
PAM4 |
| SUPPORTED PROTOCOLS | 800G Ethernet |
| POWER CONSUMPTION | 0.2 W (0.1 W + 0.1 W) |
