Description

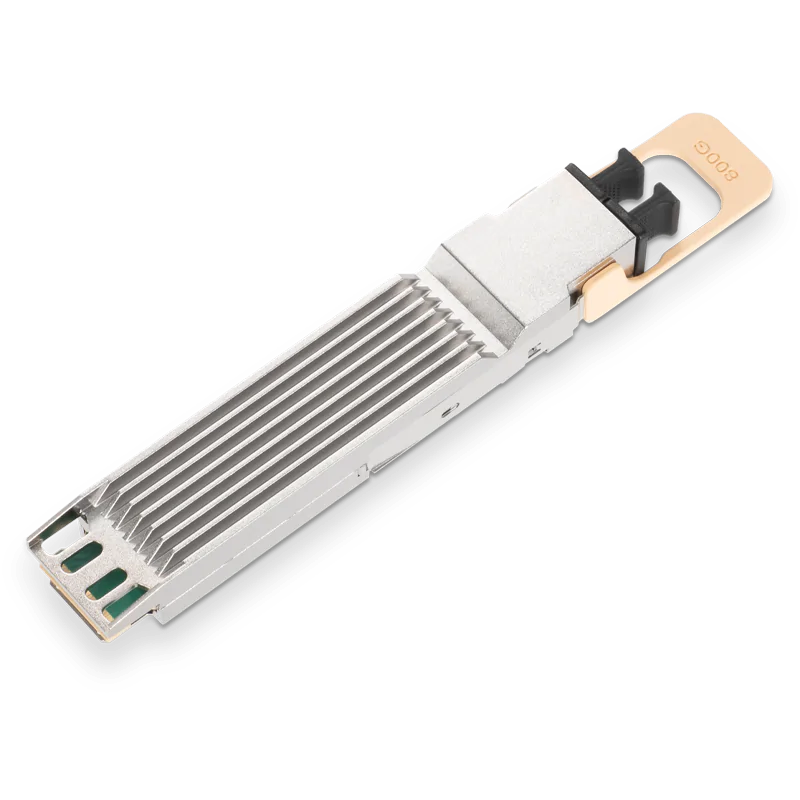

NVIDIA/Mellanox® MMA4Z00-NS Broadcom VCSEL Compatible 800G 2xSR4/SR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 850nm, 30m (OM3) /50m (OM4), Two MPO-12/APC, DOM, for MMF, Finned Top)
3Coptics OSFP-800G-2xSR4 is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.The Twin-port SR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage Quantum-2 switch. Spectrum-4 switches have 32 or 64 cages and enable 64-128 400G ports.
SPECIFICATION
| FORM FACTOR | Twin-port OSFP |
|---|---|
| DISTANCE | 30m (OM3) /50m (OM4) |
| Wavelength | 850nm |
| CONNECTOR / POLISH | 2xMTP-12 APC |
| POWER CONSUMPTION | ≤16W |
| Transmitter | VCSEL |
| Receiver | PIN |
| Media | MMF |
| Case Temperature |
0~70°C |
| Modulation（electrical) | 8x106.25Gb/s PAM4 |
|---|---|
| Modulation（Optical) | Two ports 4x106.25Gb/s PAM4 |
| Protocol | IB NDR,800G Ethernet Compliant |
