Description

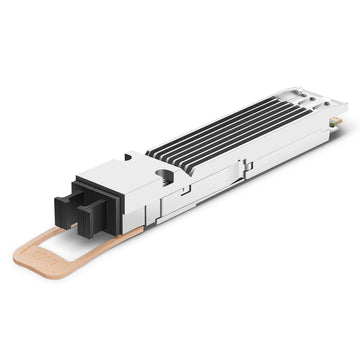

2X 400G OSFP FR4 WITH DUAL CDR2 km, λ1271-1331 nm, Mini-LC, Singlemode
- Universal OSFP Transceiver
- Use 3CBOX in combination with 3CBOX to configure to almost any vendor
- For 400GBASE-SR4 Ethernet links
- PAM4 modulated signal
- Samples available
- Supported Data Rates:2x 425 Gbit/s
- Up to 100m via with OM OS2
- 2x MPO-12 APC
SPECIFICATION
| FORM FACTOR | OSFP |
|---|---|
| CONNECTOR / POLISH | 2x MPO-12 APC |
| INTERFACE | MMF |
| TYPE | 2×SR4 |
| DISTANCE | 100M |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 8 x (Tx/Rx) |
| BANDWIDTH | 2x 425 Gbit/s |
| BANDWITH PER LANE | 106.25 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 14 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 4 dB |
| TRANSMIT MIN/MAX PER LANE | -4.6dBm / 4.0 dBm |
| RECEIVER MIN/MAX PER LANE | -6.4dBm / 4.0 dBm |
| WAVELENGTH TX (TYPICAL) | 844nm, 850nm, 863 nm |
| WAVELENGTH TX (RANGE) | |
|---|---|
| WAVELENGTH RX (TYPICAL) | 844nm, 850nm, 863 nm |
| LASER | EML |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | 4.4 dB |
| EXTINCTION RATIO | 2.5 dB |
| SUPPORTED PROTOCOLS | 800G Ethernet, 400G Ethernet |
