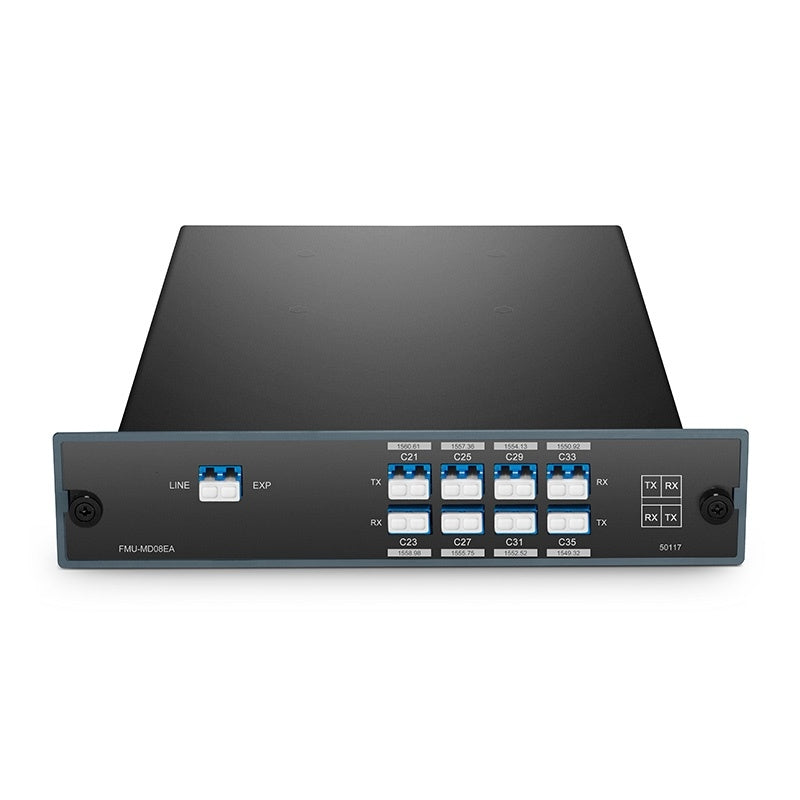

8 Channels DWDM Mux Demux, 100GHz C21-C28, with Monitor, Expansion and 1310nm Port, 2.4dB Typical IL, LC/UPC, Dual Fiber, High Density, FHD® Plug-in Module
The 8CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.
In conjunction with the FS transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 8 Channels RX-C21~C35, TX-C22~C36 |
|---|---|
| Channel Passband | ± 0.11nm |
| Insertion Loss | ≤ 4.6dB, 4.2dB Typical |
| Technology | TFF (Thin Film Filter) |
| Return Loss | ≥ 45dB |
|
Polarization Dependent Loss |
≤ 0.3dB |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Power Handling |
≤ 500mW
|
| Channel Spacing | 100GHz (0.8nm) |
| Passband Ripple | ≤ 0.5dB |
|---|---|
| Insertion Loss @ Exp | ≤ 4.6dB |
| Channel Isolation |
Adjacent channel ≥ 30dB
Non-adjacent channel ≥ 40dB |
| Directivity | 1500~1554.34 & 1561.21~1620nm |
| Insertion Loss @ Exp | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.73"x8.35"x10.04" (44x212x255mm) |
