8 Channels DWDM Mux Demux, 100GHz C21-C28, with Monitor, Expansion and 1310nm Port, 2.4dB Typical IL, LC/UPC, Dual Fiber, High Density, FHD® Plug-in Module


Price:
Sale price$499.00

Description

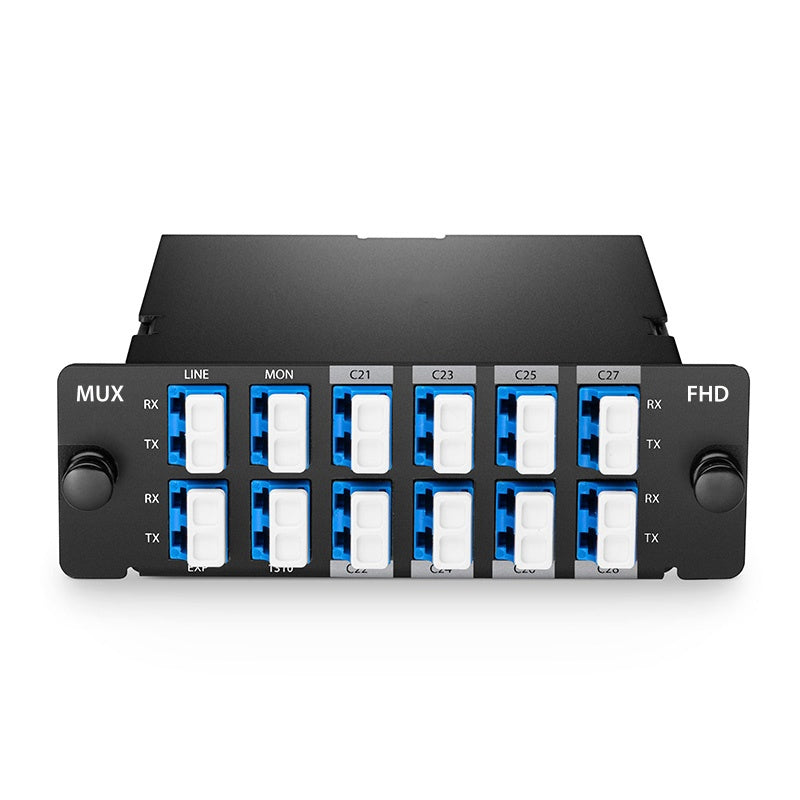

8 Channels DWDM Mux Demux, 100GHz C21-C28, with Monitor, Expansion and 1310nm Port, 2.4dB Typical IL, LC/UPC, Dual Fiber, High Density, FHD® Plug-in Module

The 8CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T, it maximizes the capacity of the C-band range.
In conjunction with the 3C transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.

SPECIFICATION

Wavelength 8 Channels C21-C28
Operating Wavelength 1520-1570nm
1310nm Port Passband 1260-1360nm
Insertion Loss ≤ 3.1dB, 2.4dB Typical
Insertion Loss @ 1310 Port ≤ 1.3dB
Passband Ripple
≤ 0.5dB
Return Loss ≥ 45dB
Polarization Dependent Loss
≤ 0.3dB
Channel Isolation Adjacent ≥ 30dB
Non-adjacent ≥ 40dB



Power Handling ≤ 500mW
Channel Spacing 100GHz (0.8nm)
Channel Passband
± 0.11nm
Expansion Port Passband 1500~1554.34 & 1561.21~1620nm
Insertion Loss @ Exp ≤ 1.3dB
Insertion Loss @ 1% Mon ≤ 24dB
Technology TFF (Thin Film Filter)
Directivity ≥ 45dB
Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
Polarization Mode Dispersion ≤ 0.1ps
Temperature Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
