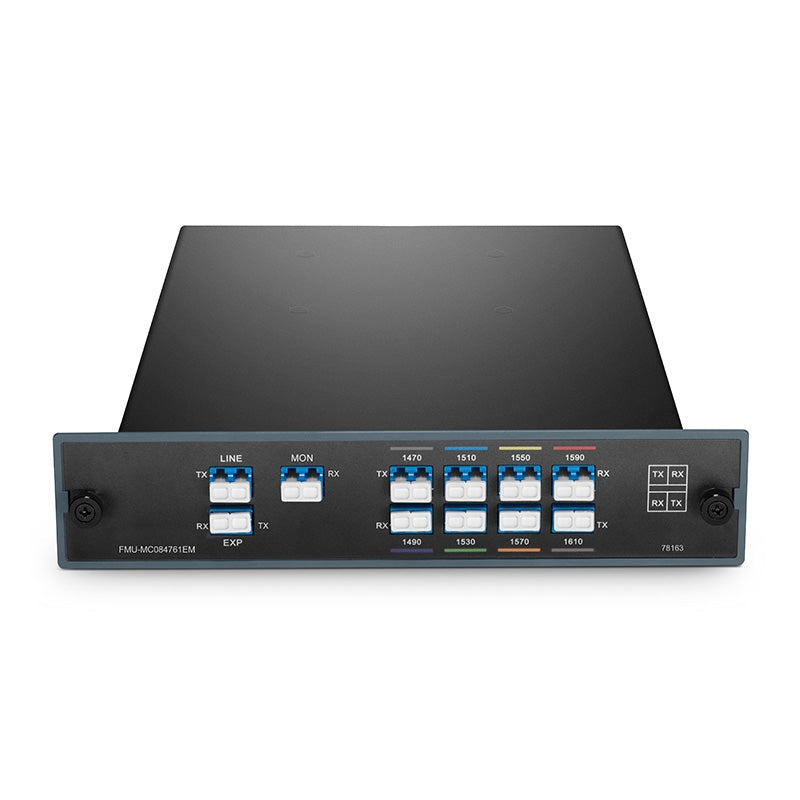

8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module
The 8CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on Free Space technology. This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with 3C CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 8 Channels 1470-1610nm |
|---|---|
| Expansion Port Passband | 1260nm~1457nm |
| Insersion Loss | ≤ 2.4dB, 2.0dB Typical |
| Insertion Loss @ Exp | ≤ 2.4dB |
| Technology | Free Space |
|
Return Loss |
≥ 45dB |
| Polarization Dependent Loss | ≤ 0.3dB |
| Power Handling |
≤ 500mW
|
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
|---|---|
| Channel Spacing | 20nm |
| Channel Passband | ± 6.5nm |
| Insertion Loss @ 1% Mon Port |
≤ 24.3dB
|
| Passband Ripple | ≤ 0.5dB |
| Channel Isolation |
Adjacent ≥ 30dB
Non-adjacent ≥ 40dB |
| Directivity | ≥ 50dB |
| Dimensions (HxWxD) | 1.73"x8.35"x10.04" (44x212x255mm) |
| Polarization Mode Dispersion | ≤ 0.1ps |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
