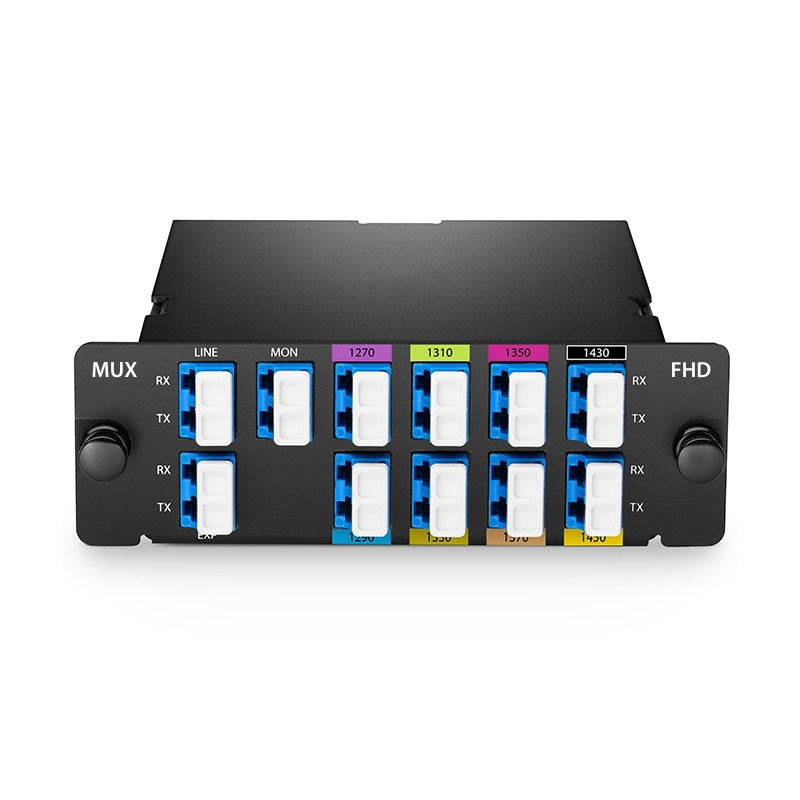

8 Channels CWDM Mux Demux, 1270-1450nm (Skip 1390, 1410nm), with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber, High Density, FHD® Plug-in Module
The 8CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on Free Space. This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.
In conjunction with 3C CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 8 Channels 1270-1450nm (Skip 1390, 1410nm) |
|---|---|
| Expansion Port Passband | 1463-1620nm |
| Insersion Loss | ≤ 2.4dB, 2.0dB Typical |
| Passband Ripple | ≤ 0.5dB |
| Return Loss | ≥ 45dB |
|
Polarization Dependent Loss |
≤ 0.3dB |
| Channel Isolation |
Adjacent ≥ 30dB Non-adjacent≥ 40dB |
| Power Handling |
≤ 500mW
|
| Channel Spacing | 20nm |
|---|---|
| Channel Passband | ± 6.5nm |
| Insertion Loss |
@ Exp ≤ 1.0dB
@ 1% Mon ≤ 24dB |
| Technology | Free Space |
| Directivity |
≥ 50dB
|
| Polarization Mode Dispersion | ≤ 0.1ps |
| Temperature |
Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
