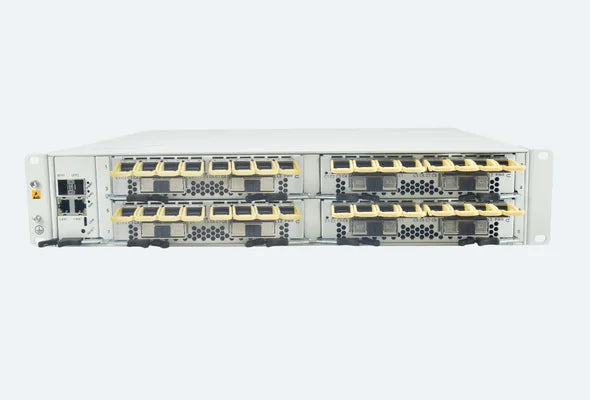

Highly integrated, optoelectronic integration 2U Managed Chassis
2U network management chassis supports up to 3x 200G Transponder/Muxpoder boards, up to a maximum capacity of 600G. It supports ZTP installation and can be used after installation without configuration. All boards, power supplies, and fans support hot swapping. The platform supports multiple service types, including FC/Ethernet/SDH, etc. The network management platform supports CLI, Telnet, SNMPv2, and Web, with flexible management methods.
| Slot Count |
7 |
|---|---|
| Power Supply |
1+1 redundent power, -48VDC or 220V AC |
| Management Type |
CLI、Telnet、SNMPv2、Web |
| Relative Humidity(non-condensing) | 5% ~ 95% |
| Board Hot Pluggable | Supports |
| Operating Temperature | -10 to 60°C |
| Enclosure Type | Rack Mountable |
| Power Consumption | < 180W |
| Network Interface | 3× SFP LAN Ports 100Base-X 2× RJ45 LAN Ports 10/100Base-T |
| Dimensions (HxWxD) | 88mm x 442mm x 220mm |
| ZTP | Supports |
| Storage Temperature | -40 to 80°C |
