Description

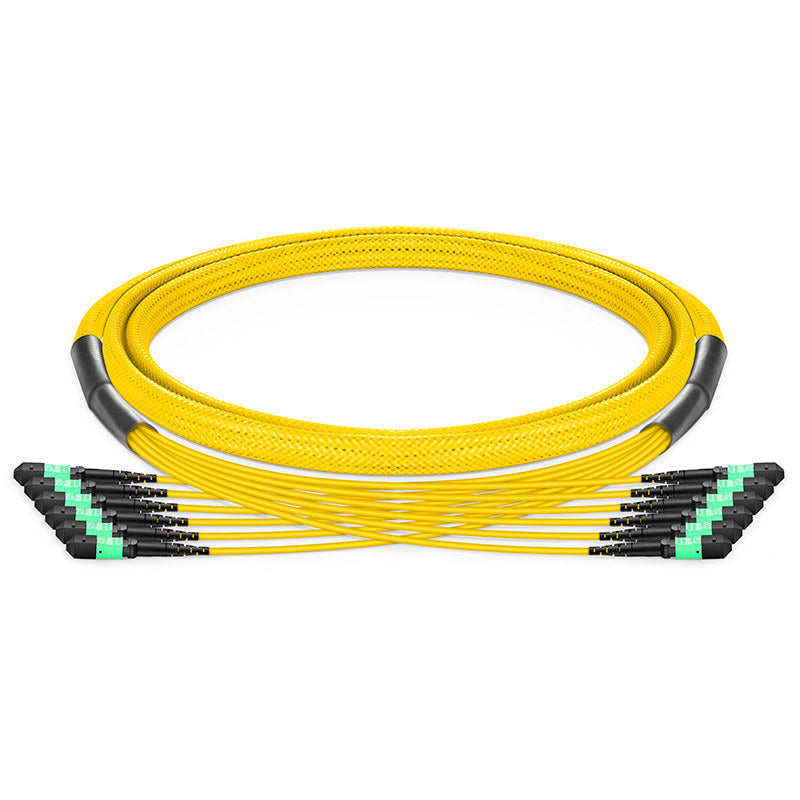

MTP Female to MTP Female OS2 Single Mode Trunk Cable
MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
SPECIFICATION
| Connector A | US Conec MTP Female (Pinless) |
|---|---|
| Fiber Mode | OS2 9/125μm SM |
| Glass Fiber | Corning SMF-28® Ultra |
| Polish Type | APC to APC |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to +70°C (14 to 158℉) |
| Connector B | US Conec MTP Female (Pinless) |
| Operating Temperature | -10 to +70°C (14 to 158℉) |
|---|---|
| Wavelength | 1310/1550nm |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Mini Bend Radius | 10mm |
| Return Loss | ≥60dB |
|
|
| Cable Jacket |
LSZH |
|---|---|
| Tensile Strength (Long/Short Term) | 80/240N |
| Storage Temperature | -40 to +85°C (-40 to 185℉) |
