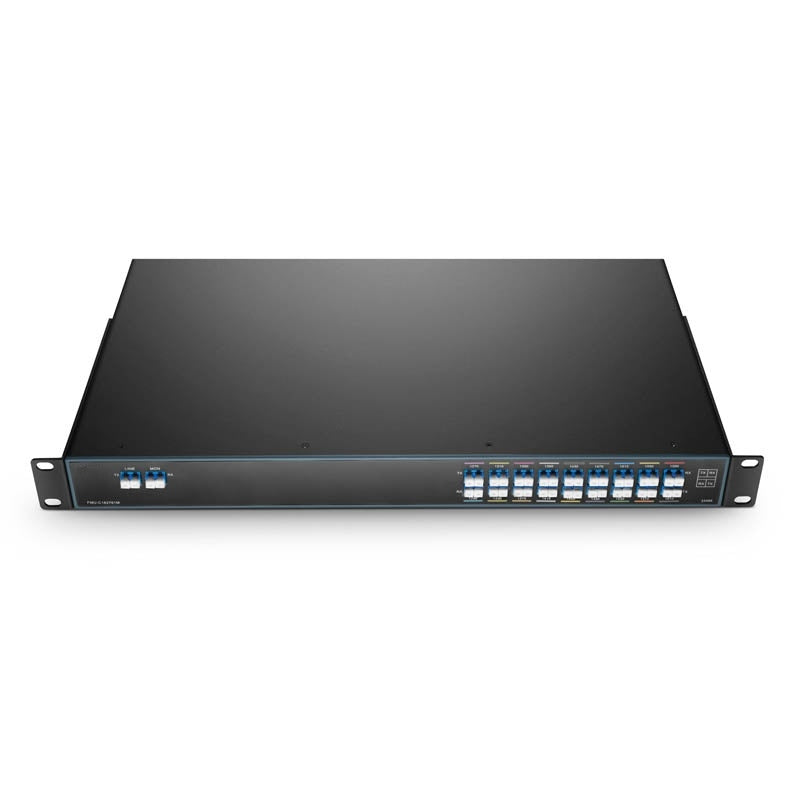

8 Channels CWDM Mux Demux, 1270-1450nm (Skip 1390, 1410nm), 2.5dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module
The 18CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with 3C CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 18 Channels 1270-1610nm |
|---|---|
| Passband Ripple | ≤ 0.5dB |
| Channel Passband | ± 6.5nm |
| Insertion Loss | ≤ 5.5dB, 5.0dB Typical |
| Return Loss | ≥ 45dB |
|
Polarization Dependent Loss |
≤ 0.3dB |
| Channel Isolation |
Adjacent ≥ 30dB Non-adjacent ≥ 40dB |
| Power Handling |
≤ 500mW
|
| Channel Spacing | 20nm |
|---|---|
| Center Wavelength Accuracy | ± 0.05nm |
| Technology | TFF (Thin Film Filter) |
| Insertion Loss @ 1% Mon |
≤ 24.5dB
|
| Directivity | ≥ 50dB |
| Polarization Mode Dispersion |
≤ 0.1ps
|
| Temperature |
Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.73"x19"x10.28" (44x481.8x261.2mm) |
