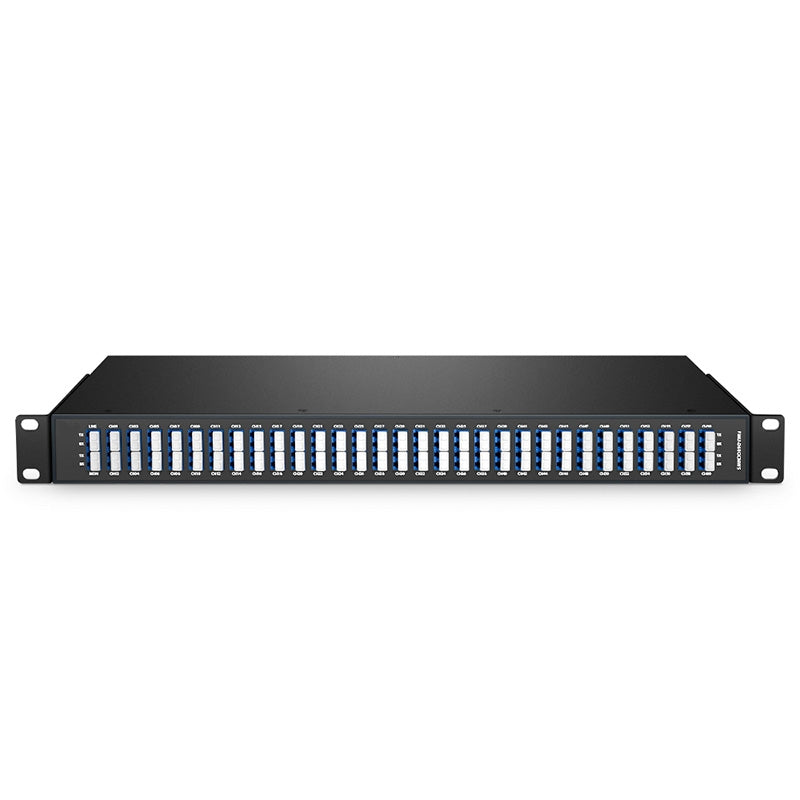

60 Odd Channels DWDM Mux Demux, Super C-band 100GHz 1524.50-1571.65nm, with Monitor Port, 6.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
The 60CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on AAWG (Flat-top). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T, it maximizes the capacity of the super C-band range.
In conjunction with the FS transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 60 Odd Channels 190.75-196.65THz (1524.50-1571.65nm) |
|---|---|
| Channel Passband | ±12.5GHz |
| Insertion Loss @ 1% Mon TX | ≤27dB |
| Wavelength Accuracy | ±50pm |
| Adjacent Channel Isolation | ≥25dB |
|
Return Loss |
≥40dB |
| Polarization Dependent Loss | ≤0.5dB |
| Operating Temperature |
-5 to 65℃ (23 to 149°F)
|
| Net Weight | 4.185kg |
|---|---|
| Channel Spacing | 100GHz |
| Insertion Loss | ≤6.7dB, 6.0dB Typical |
| Insertion Loss @ 1% Mon RX |
≤22dB
|
| Technology | AAWG (Flat-top) |
| Non-adjacent Channel Isolation | ≥30dB |
| Directivity | ≥40dB |
| Polarization Mode Dispersion | ≤1.0ps |
| Storage Temperature | -40 to 85℃ (-40 to 185°F) |
|---|---|
| Dimensions (HxWxD) | 1.73"x19"x10.4" (44x481.8x264.1mm) |
