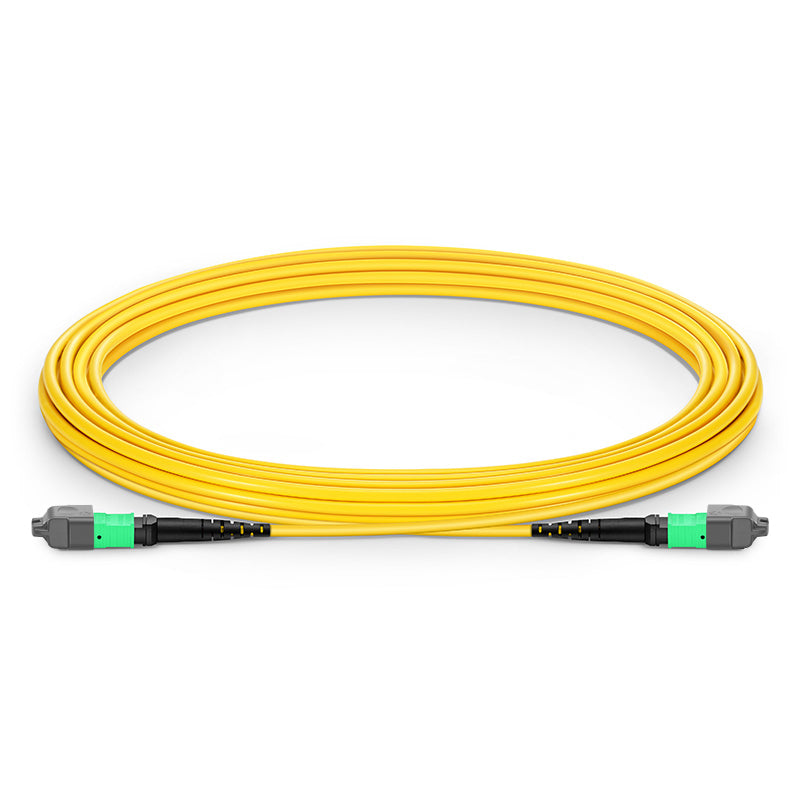

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

Length:: 5m(16ft)
Sale price$49.00


MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MTP-12 also supporting MTP-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Connector A US Conec MTP Female (Pinless)
Fiber Mode OS2 9/125μm SM
Glass Fiber Corning SMF-28® Ultra
Polish Type
Insertion Loss
0.35dB Max (0.15dB Typ.)
Attenuation at 1310nm ≤0.32dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)


Connector B US Conec MTP Female (Pinless)
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius 10 mm
Return Loss ≥60dB
Attenuation at 1550nm ≤0.18dB/km
Cable Jacket LSZH
STORAGE TEMPERATURE -40 to 85°C (-40 to 185℉)
