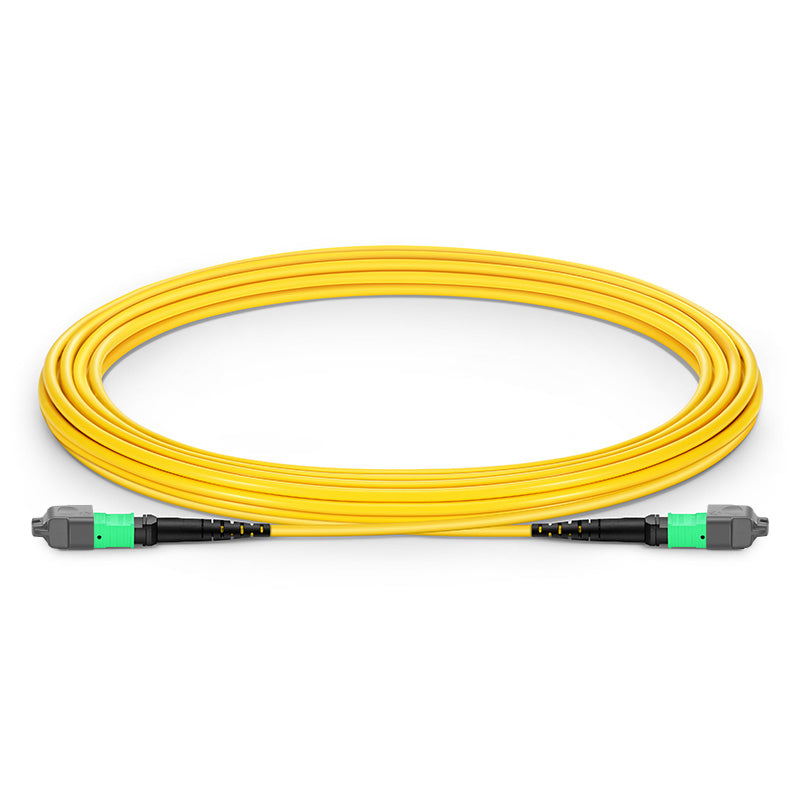

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable, 12 Fibers, Type A, Plenum (OFNP), Yellow


Length:: 5m(16ft)
Price:
Sale price$58.10

Description

MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 10G/40G/100G high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

SPECIFICATION

Connector A US Conec MTP Female (Pinless)
Fiber Mode OS2 9/125μm SM
Glass Fiber Corning SMF-28 Ultra
Polish Type APC to APC
Insertion Loss 0.35dB Max (0.15dB Typ.)
Attenuation at 1310nm ≤0.32dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N



Operating Temperature -10 to 70°C (14 to 158℉)
Connector B US Conec MTP Female (Pinless)
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius 10mm
Return Loss ≥60dB
Attenuation at 1550nm ≤0.18dB/km
Cable Jacket Plenum (OFNP)
Tensile Strength (Long/Short Term) 80/240N
Storage Temperature -40 to +85°C (-40 to 185℉)
