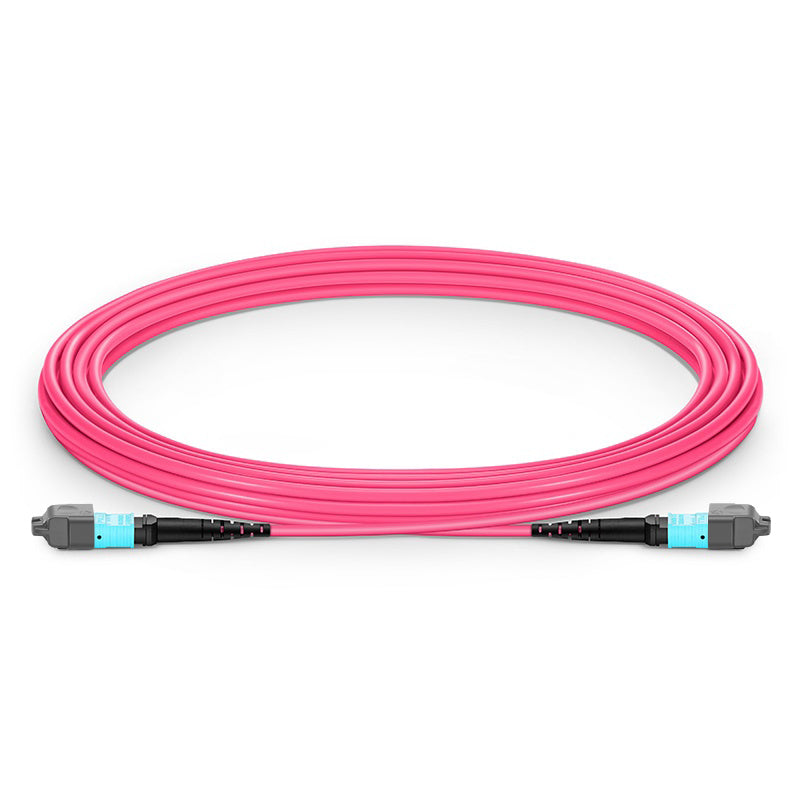

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning ClearCurve fiber, it is optimized for 10G/40G/100G high-density data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | US Conec MTP Female (Pinless) |
|---|---|
| Fiber Mode | OM4 50/125μm |
| Glass Fiber | Corning ClearCurve® |
| 40/100G Ethernet Distance | 150m at 850nm |
| Polish Type | UPC to UPC |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Attenuation at 850nm | ≤2.3dB/km |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
|---|---|
| Connector B | US Conec MTP Female (Pinless) |
| Wavelength | 850/1300nm |
| 10G Ethernet Distance | 400m at 850nm |
| RoHS Compliancy Status | Compliant |
| Minimum Bend Radius | 7.5mm |
|
|
| Return Loss | ≥20dB |
|---|---|
| Attenuation at 1300nm | ≤0.6dB/km |
| Cable Jacket | Plenum (OFNP) |
| Tensile Strength (Long/Short Term) | 80/240N |
| Storage Temperature | -40 to 85°C (-40 to 185℉) |
|---|
