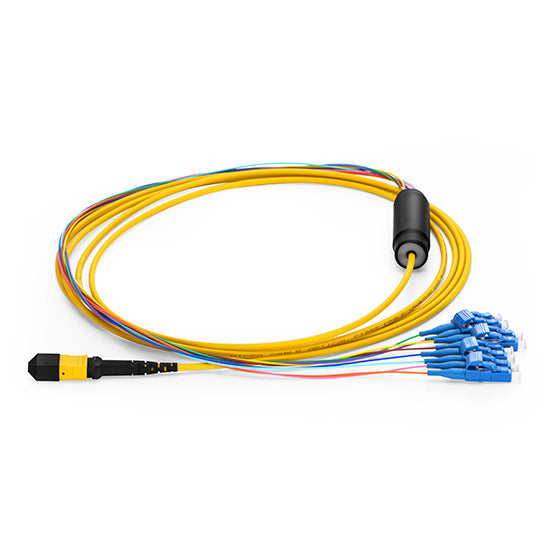

MTP breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | US Conec MTP® Female (Pinless) |
|---|---|
| Fiber Mode | OS2 SMF 9/125μm |
| 40/100G Ethernet Distance00 |
100m at 850nm |
| Glass Fiber | Corning SMF-28® Ultra |
| MTP Connector IL | ≤0.35dB Max (0.15dB Typ.) |
| MTP Connector RL | ≥60dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Cable Jacket | LSZH |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Connector B | LC UPC Duplex |
| Wavelength | 1310/1550nm |
| LC Connector IL |
≤0.2dB
|
| LC Connector RL | ≥50dB |
|---|---|
| Storage Temperature | -40°C to +85°C |
| Fiber Count | 8 Fibers |
| Tensile Strength (Long/Short Term) | 80N/240N |
