Description

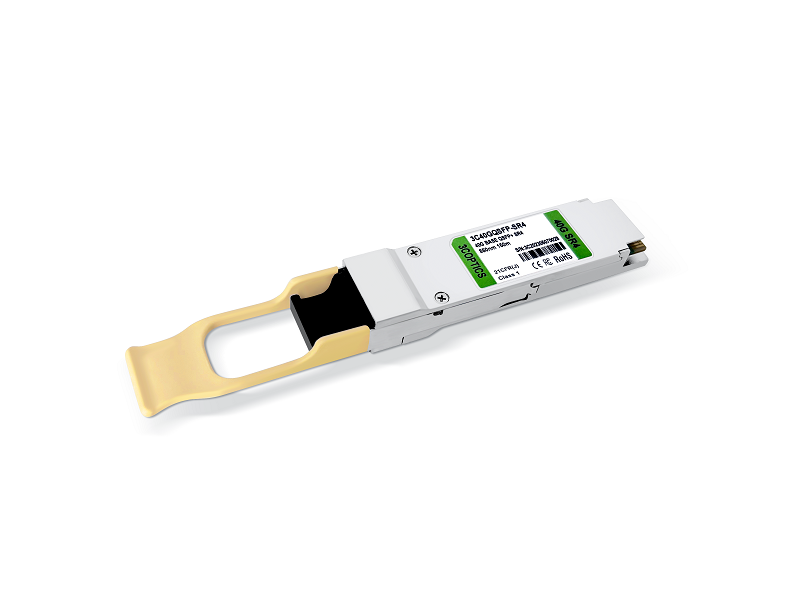

40G QSFP+ PIR4 1.4 km, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode
- Universal QSFP+ Transceiver
- Use 3CBOX to configure to almost any vendor
- For 40GBASE-PIR4 Ethernet links
- Supported Data Rates: 41.2 Gbit/s (4x 10.3 Gbit/s) - 44.8 Gbit/s (4x 11.2 Gbit/s)
- Up to 1 km via Singlemode OS2
- Use ONLY with MTP/MPO-8/12 APC connectors
SPECIFICATION
| FORM FACTOR | QSFP+ |
|---|---|
| CONNECTOR / POLISH | MTP/MPO-8/12 APC |
| INTERFACE | Singlemode |
| TYPE | PIR4 |
| DISTANCE | 2 km |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 4 x (Tx/Rx) |
| BANDWIDTH | 41.2 Gbit/s - 44.8 Gbit/s |
| BANDWITH PER LANE | 10.3 Gbit/s - 11.2 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 3.5 W |
| CDR | none |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 7.6 dB |
| TRANSMIT MIN/MAX PER LANE | -5 dBm / 0 dBm |
| RECEIVER MIN/MAX PER LANE | -12.6 dBm / 0 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 4x 1310 nm |
| WAVELENGTH TX (RANGE) | 1260 - 1355 nm |
|---|---|
| WAVELENGTH RX (TYPICAL) | 4x 1310 nm |
| LASER | FP |
| RECEIVER TYPE | PIN |
| MODULATION | NRZ |
| TRANSMIT AND DISPERSION PENALTY | |
| EXTINCTION RATIO | 3.5 dB |
| SUPPORTED PROTOCOLS | 40G Ethernet, 10G Ethernet, OTU3, OTU3e2 |
