Description

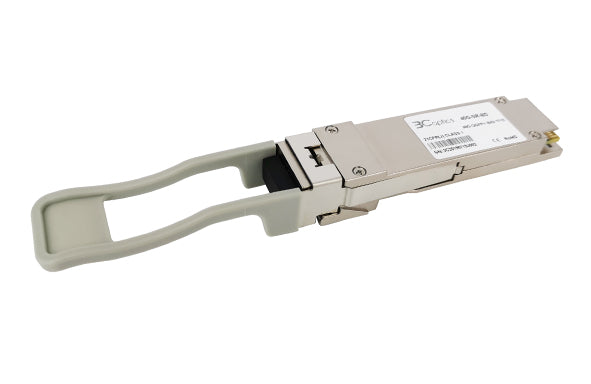

40G QSFP+, 100 GHZ GRID - C-BAND DWDM LR WITH FEC10 km / 11 dB, LC-Duplex
- Universal QSFP+ Transceiver
- Use 3CBOX to configure to almost any wendor
- CWDM for multiple applications over one duplex fiber
- For 40GBASE-LR Ethernet links
- PAM4 modulated signal
- Up to 80km with EDFA and DCM on G.652 fiber (KP4 FEC included)
- Supported Data Rates: 41.25 Gbit/s
- Powerbudget of 11 dB for up to 10 km using an OS2 ITU-T G.652 fiber
SPECIFICATION
| FORM FACTOR | QSFP+ |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | CWDM |
| TYPE | CWDM LR |
| DISTANCE | 10 km |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | |
| BANDWIDTH | 41.25 Gbit/s |
| BANDWITH PER LANE |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 3.5 W |
| CDR | none |
| SGMII | |
| INBUILT FEC | Yes |
| POWERBUDGET (DB) | 11dB |
| TRANSMIT MIN/MAX PER LANE | 0 dBm / 4 dBm |
| RECEIVER MIN/MAX PER LANE | -11 dBm / 4 dBm (overload) |
| WAVELENGTH TX (TYPICAL) |
| WAVELENGTH TX (RANGE) | |
|---|---|
| WAVELENGTH RX (TYPICAL) | 1260 - 1570 nm |
| LASER | EML |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | 2 dB |
| DISPERSION TOLERANCE | -50 ps/nm to 170 ps/nm |
| SUPPORTED PROTOCOLS | 40G Ethernet |
