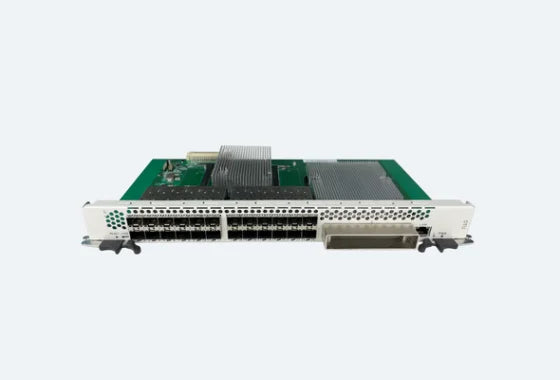

40G/100G Muxponder for Multi-Service Transmission
The 40G&100G Muxponer service board supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing and can convert the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals, so that the multiplexing unit can perform different wavelengths. Wavelength division multiplexing is performed on the optical signal, and the inverse process of the above process is realized at the same time. It is suitable for 10G~25G forward multiplexing or 40G/100G reverse multiplexing intra-metro wavelength division short-distance transmission scheme.
| Client Interface | 10G SFP+/ 25G SFP28 |
|---|---|
| Line Interface | 40G QSFP+/100G QSFP28 |
| Line Interface Wavelength Range | 1528~1568nm (C-Band) 1270~1610nm(CWDM） |
| Out-Band Management | SNMP v2, WEB |
| Operating Temperature | -10 to 60°C |
| Client Interface Protocols | 10GE, 25GE, 8G, 10G, 16G, 32G FC, STM-64, OTU2, eCPRI |
| Line Interface Protocol | 40GE, 100GE, OTU3, OTU4 |
| Line Modulation | NRZ |
|---|---|
| Power Consumption | ＜13w |
| STORAGE TEMPERATURE | -40 to 80°C |
