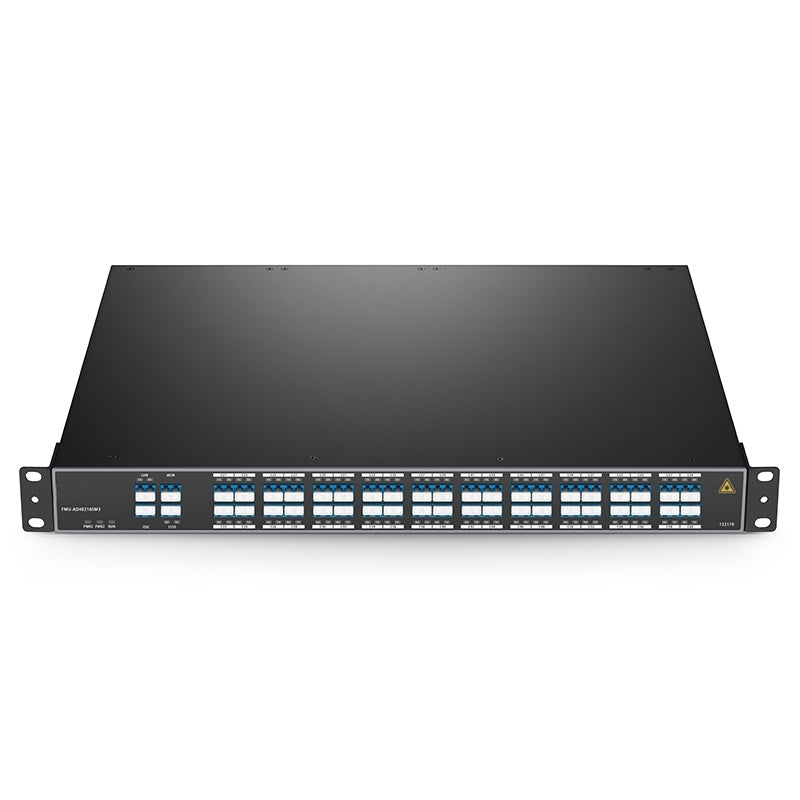

40 Channels DWDM Mux Demux, 100GHz C21-C60 Active, with 1310nm and Monitor Port, 4.8dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
The 40CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on AAWG (Gaussian). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.
In conjunction with the FS transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations
SPECIFICATION
| Wavelength | 40 Channels C21-C60 |
|---|---|
| Channel Passband | ±0.1nm |
| Center Wavelength Accuracy | ±0.05nm |
| Insertion Loss | ≤5.5dB, 4.8dB Typical |
| Insertion Loss @ 1310 Port | ≤1.5dB |
|
Insertion Loss @ OSC Port |
≤1.5dB |
| Passband Ripple | ≤1.5dB |
| Polarization Mode Dispersion |
≤0.5ps
|
| Channel Isolation |
Adjacent ≥25dB Non-adjacent ≥30dB |
|---|---|
| Power Supply | Dual power, 100VAC~240VAC |
| Channel Spacing |
100GHz (0.8nm)
|
| Technology | AAWG (Gaussian) |
| Management Type | SNMP v1/v2/v3 |
| Link Loss | ≤11.0dB |
| Insertion Loss @ 1% Mon | ≤26dB |
| Insertion Loss Uniformity | ≤1.5dB |
|---|---|
| Directivity | ≥40dB |
| Polarization Dependent Loss |
≤0.9dB
|
| Temperature |
Operating -5 to 65°C (23 to 149°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.73"x19"x12" (44x481.8x400mm) |
